Figure 5 | Scientific Reports

Figure 5

From: Anatomically modern human in the Châtelperronian hominin collection from the Grotte du Renne (Arcy-sur-Cure, Northeast France)

Figure 5

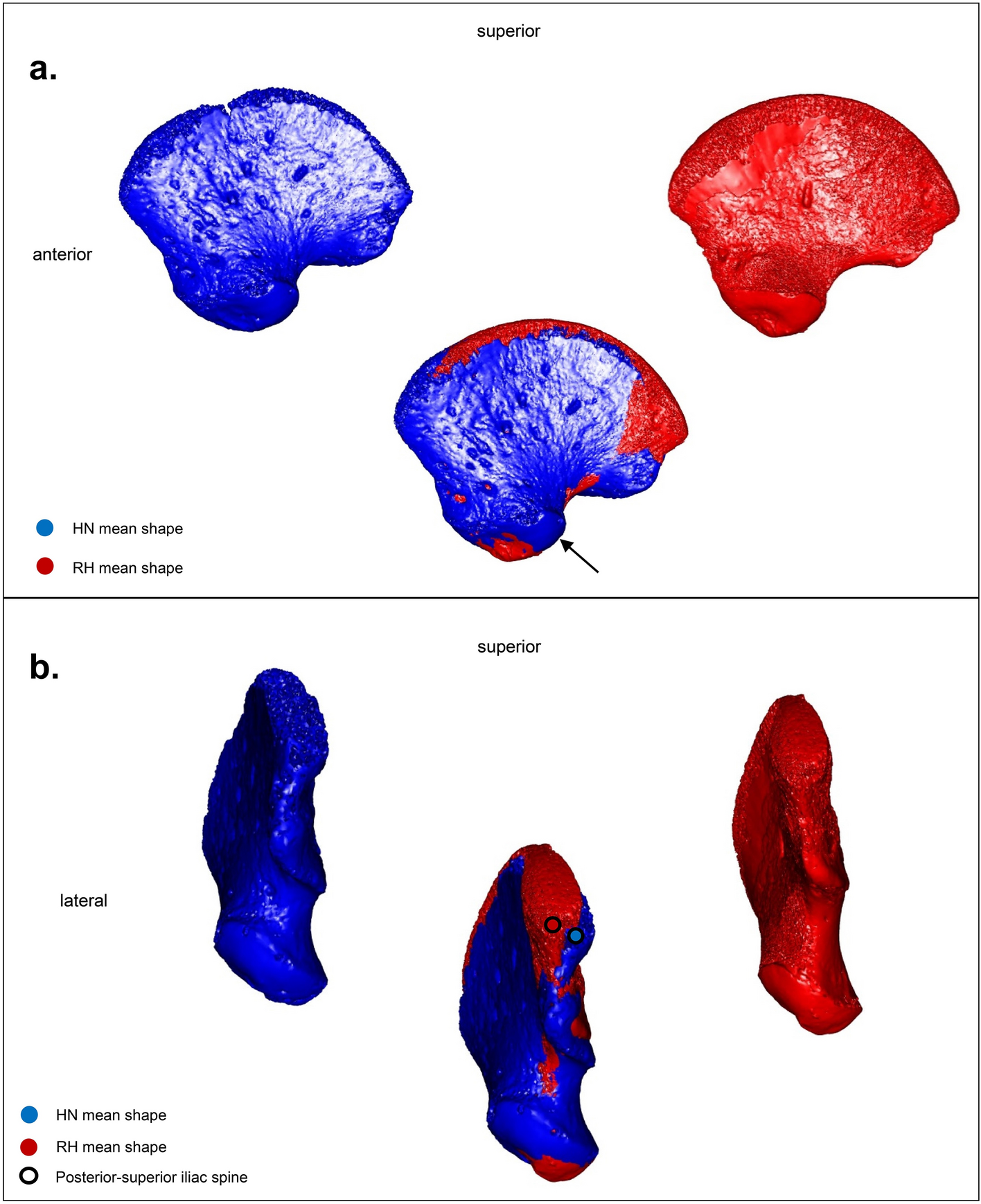

(a) Comparison between the mean shapes of the Neanderthals (HN, blue) and the recent perinatal individuals (RH, red) in lateral view. The superposition of the ilia highlights the differences between recent individuals and Neanderthals in the orientation of their acetabular area, more posterolateral (black arrow) among the latter. (b) Same comparison in posterior view. Note the distance between the posterior-superior iliac spines of the Neanderthal mean shape (blue dot) and the mean shape of recent individuals (red dot). The figure was generated using R software (version 4.1.2) http://www.R-project.org/ and Adobe Illustrator (version 4.1.2) https://www.adobe.com/products/illustrator.html.
