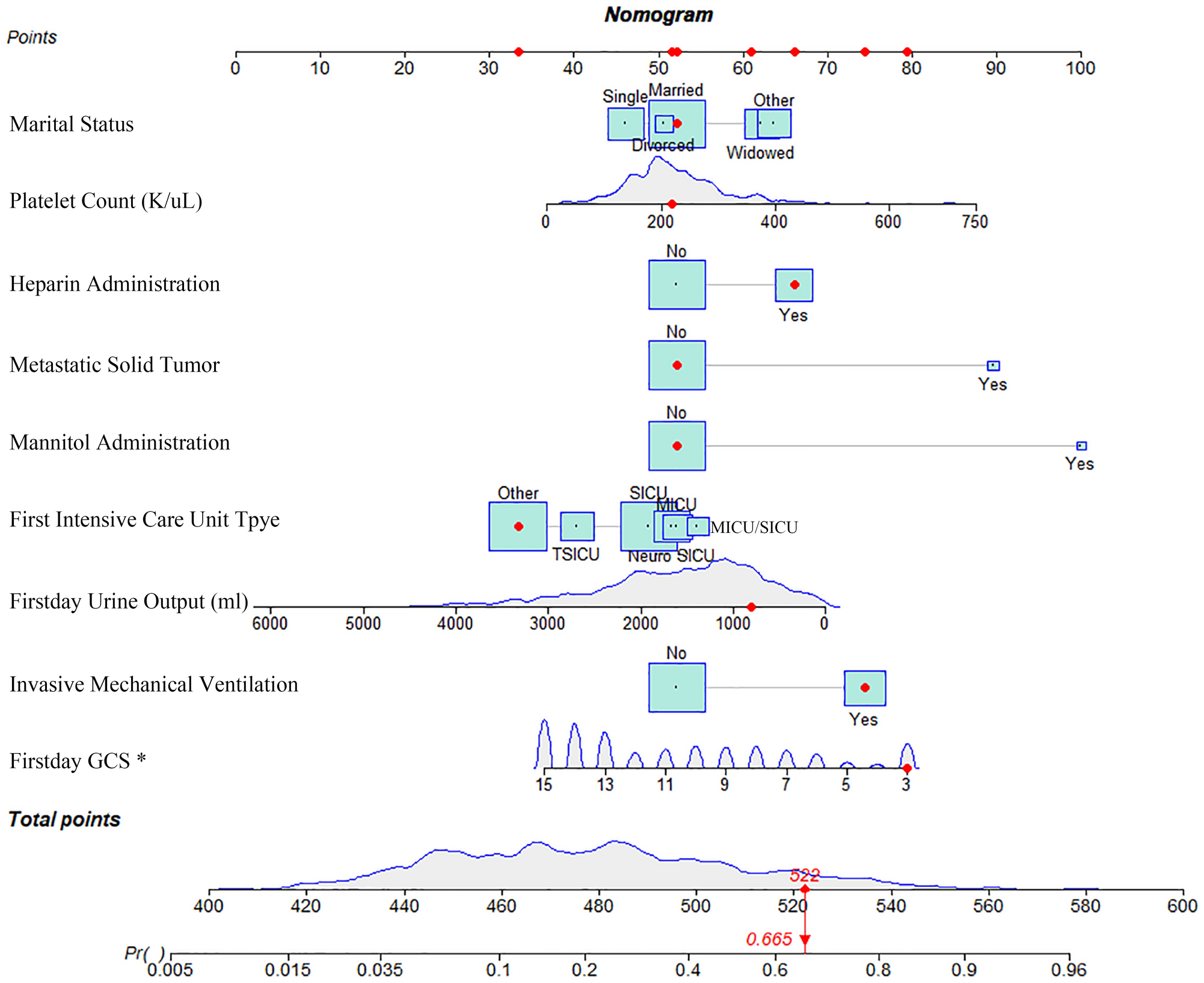

Figure 3
Nomogram for predicting 28-day mortality among elderly ischemic stroke patients. A red dot on the nomogram represents a specific patient's characteristics. In this example, the patient is married, without a history of metastatic solid tumor, and was admitted to the ICU of the "other" type. The patient's first-day urine volume was 800ml, GCS score was 3 points, and the maximum platelet count recorded was 218K/uL. The patient did not receive mannitol, but accepted heparin anticoagulation and mechanical ventilation. The sum of these specific points, calculated as 522, corresponds to a location on the total points line. From this point, a solid red line is drawn vertically down to the survival axis, indicating a risk probability of 28-day mortality, which in this case is 66.5%. This nomogram serves as a valuable clinical tool, allowing healthcare professionals to estimate individual patient risk and make informed decisions regarding patient care.
