Figure 3 | Scientific Reports

Figure 3

From: Neutron spin echo spectroscopy with a moving sample

Figure 3

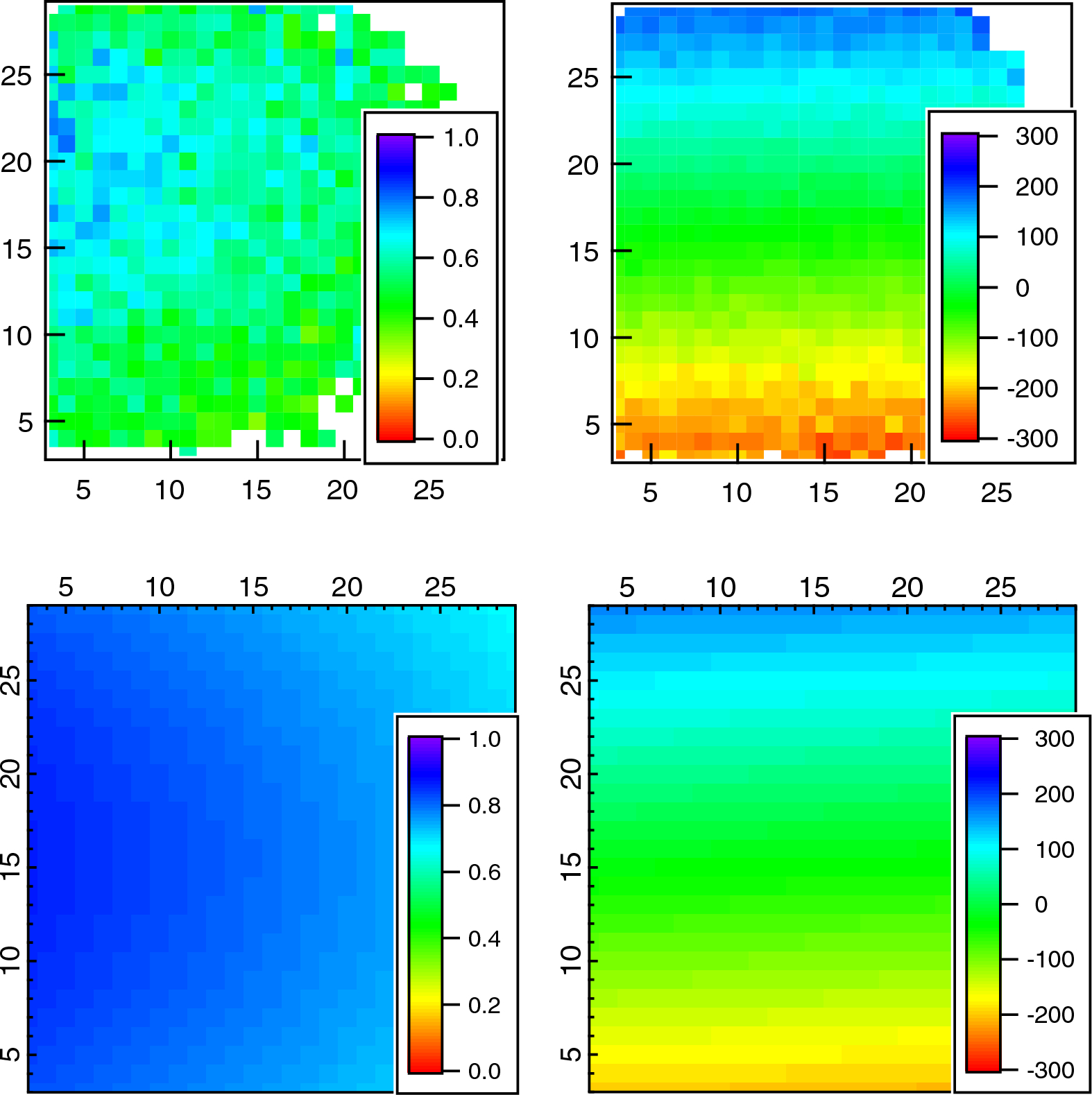

(Top panel experimental, bottom simulation) 2D phase (right panel) and amplitude (left panel) images at a detector angle of 6\(^\circ\) and a Fourier time of \(\tau =141\) ns from a graphite block rotating at a speed of 73 rpm. Note that the amplitude maps have not been corrected for beam divergence, hence the overestimation of the amplitude. This is done in Fig. 4 Right.
