From: Association between increased anterior cingulate glutamate and psychotic-like experiences, but not autistic traits in healthy volunteers

Figure 1

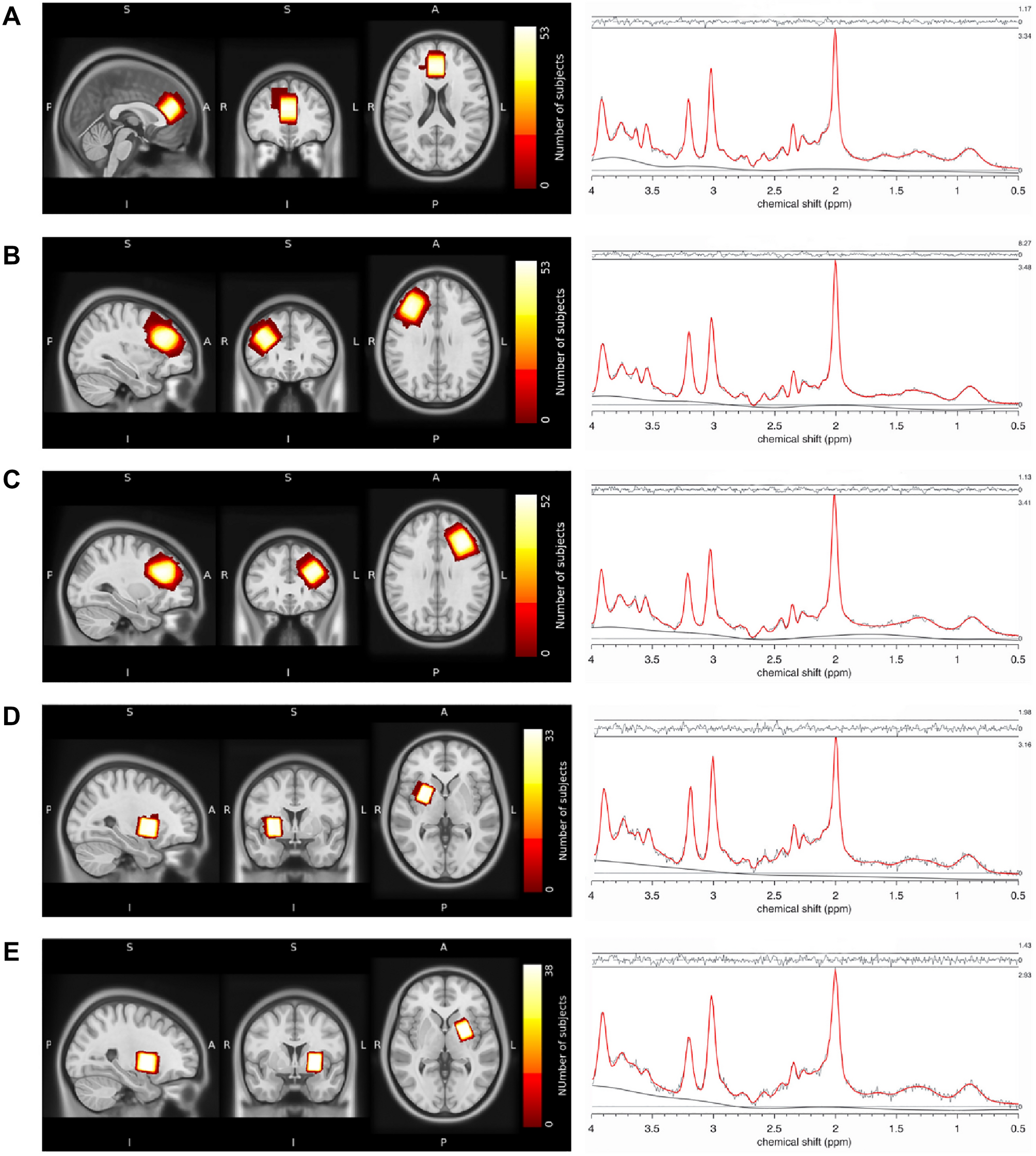

Voxel placement and representative fitted MRS spectra. Placement of MRS voxels and 1H-MRS spectrum fitted by Osprey of the (A) ACC, (B) DLPFC right, (C) DLPFC left, (D) putamen right, and (E) putamen left. The colors indicate the areas covered by the subjects’ individually placed MRS voxels. The individual voxels were standardized with SPM12, overlapped in MRIcroGL and visualized in FSLeyes. ACC, anterior cingulate cortex; DLPFC, dorsolateral prefrontal cortex.
