From: Particulate matter impairs immune system function by up-regulating inflammatory pathways and decreasing pathogen response gene expression

Figure 2

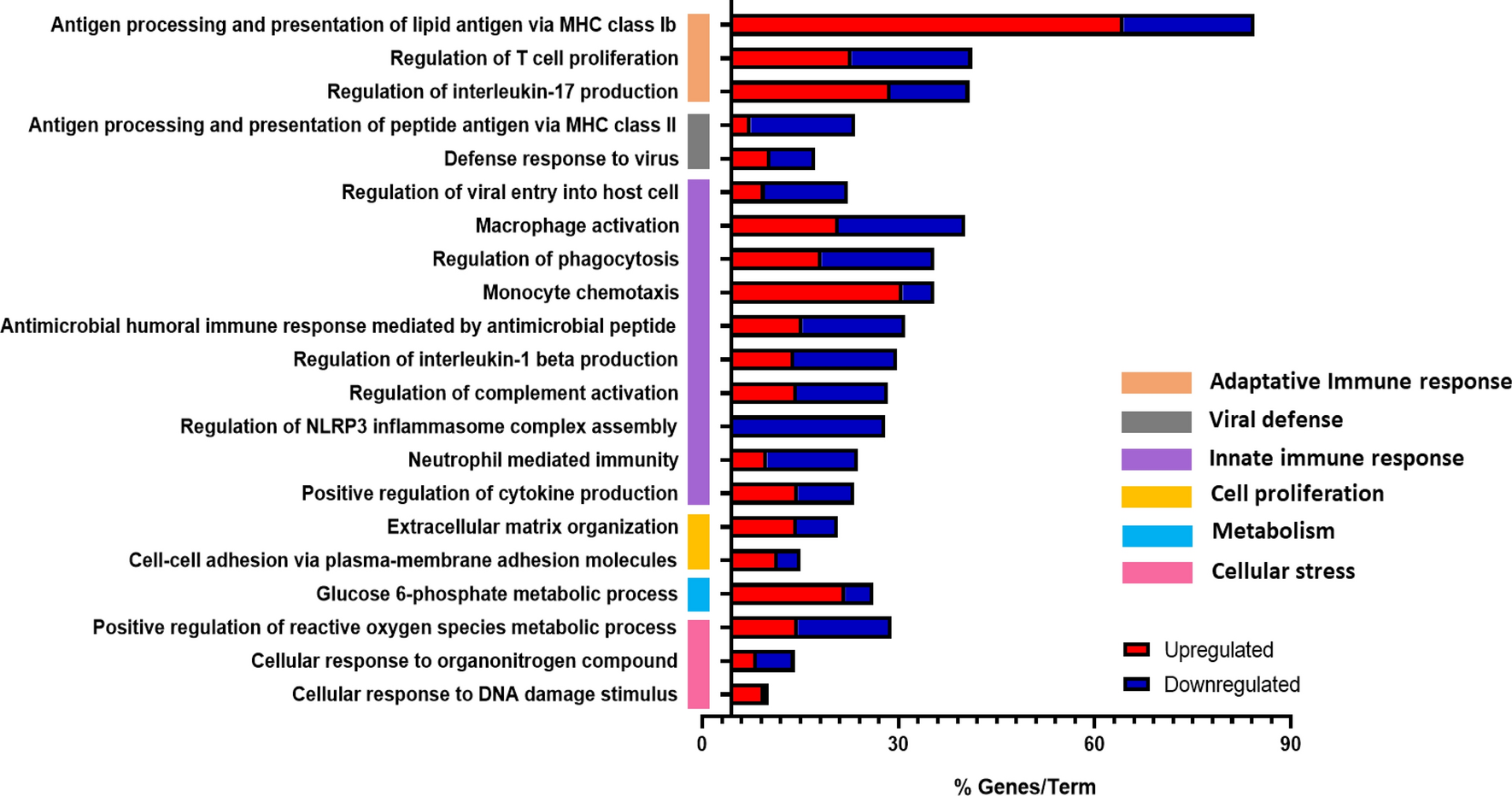

Genes and biological processes associated with PM10 exposure. Gene-term enrichment analysis of differentially expressed genes (DEG) in PBMCs exposed to PM10. The horizontal bars represent the percentage of genes regulated within the Term (% Genes/Term). Red and blue colors represent up- and down-regulated genes, respectively. The colored-vertical bars represent major gene term groups.
