Figure 2

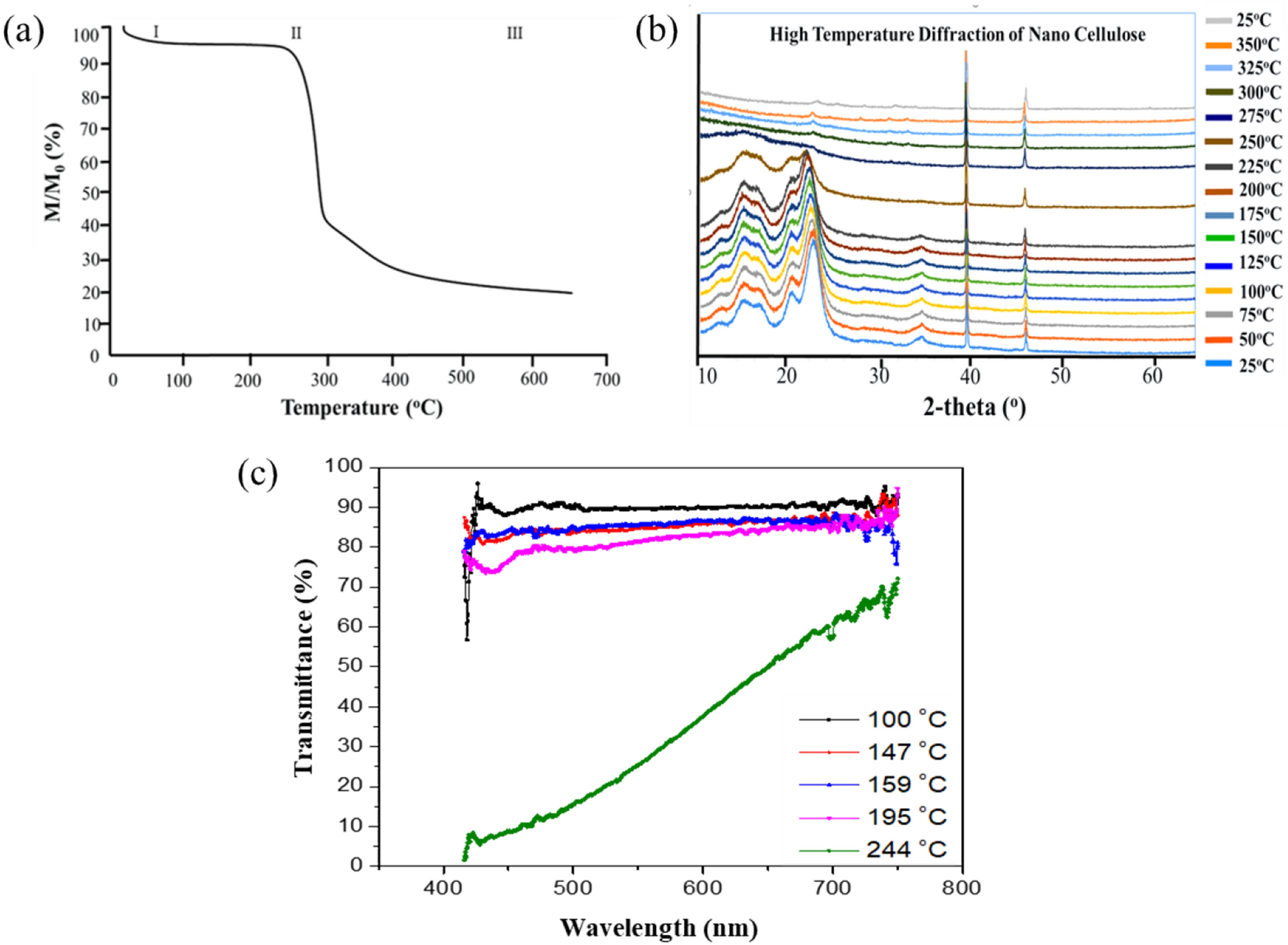

(a) TGA thermogram of the CNC-Chl particles between 20 and 650 °C. (b) X-ray diffraction spectra of the CNC-Chl particles at different temperatures. (c) Transmittance of the silicone plates filled with CNC-Chl at different temperatures.
