Figure 3

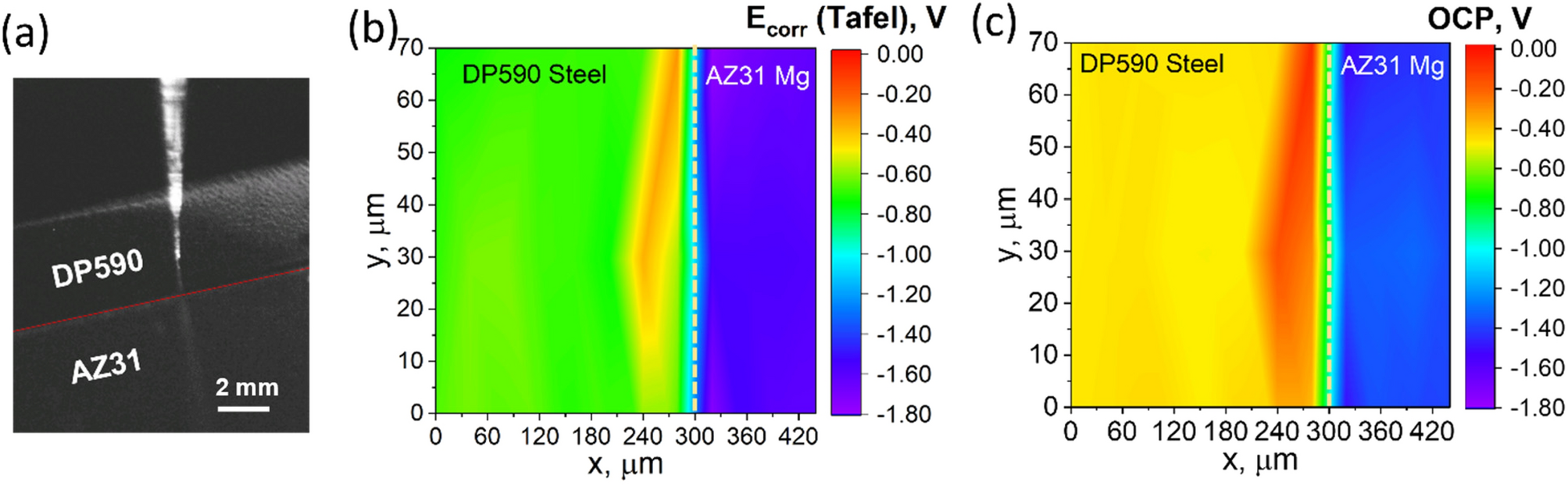

(a) Optical microscope image showing the positioning of the SECCIM electrode over the DP590 substrate, interface, and AZ31 regions as marked; (b) Ecorr and (c) OCP x–y images of a 70 µm × 500 µm area are shown for the interfacial region. Dotted lines represent the interface between DP590 and AZ31.
