Figure 4
From: Transcriptome and WGCNA reveal hub genes in sugarcane tiller seedlings in response to drought stress

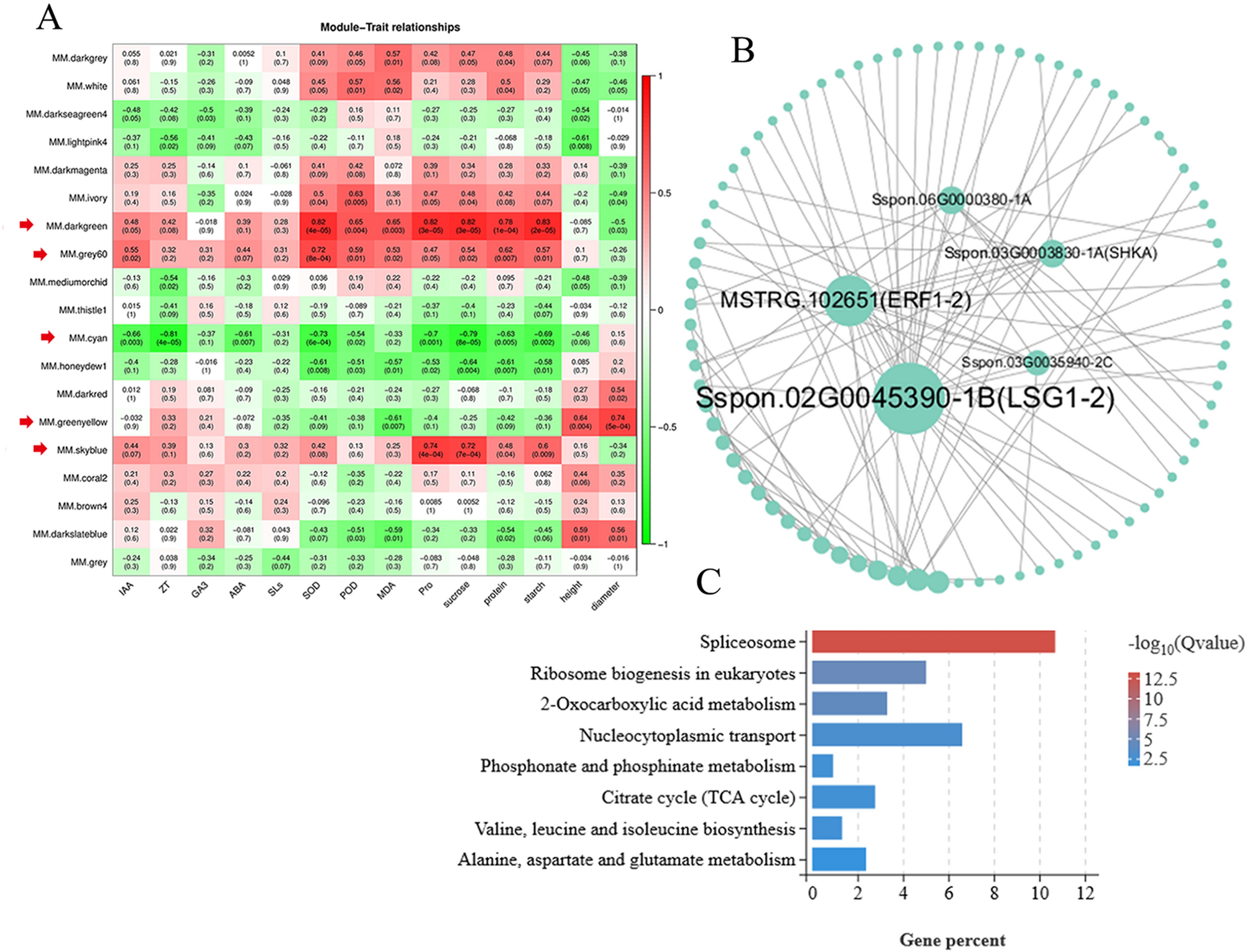

WGCNA module identification and correlation analysis. (A) the correlation of the identified modules with the physiological or biological traits under drought stress. Red and green color notes positive and negative correlation with gene expression, respectively. (B) Gene interaction network analysis in the darkgreen modules, the bigger the node, the greater the number of connections it has. The center area of the circle were candidate hub genes. (C) KEGG pathway enrichment analysis of the darkgreen modules.
