Figure 6
From: Stabilization and racetrack application of asymmetric Néel skyrmions in hybrid nanostructures

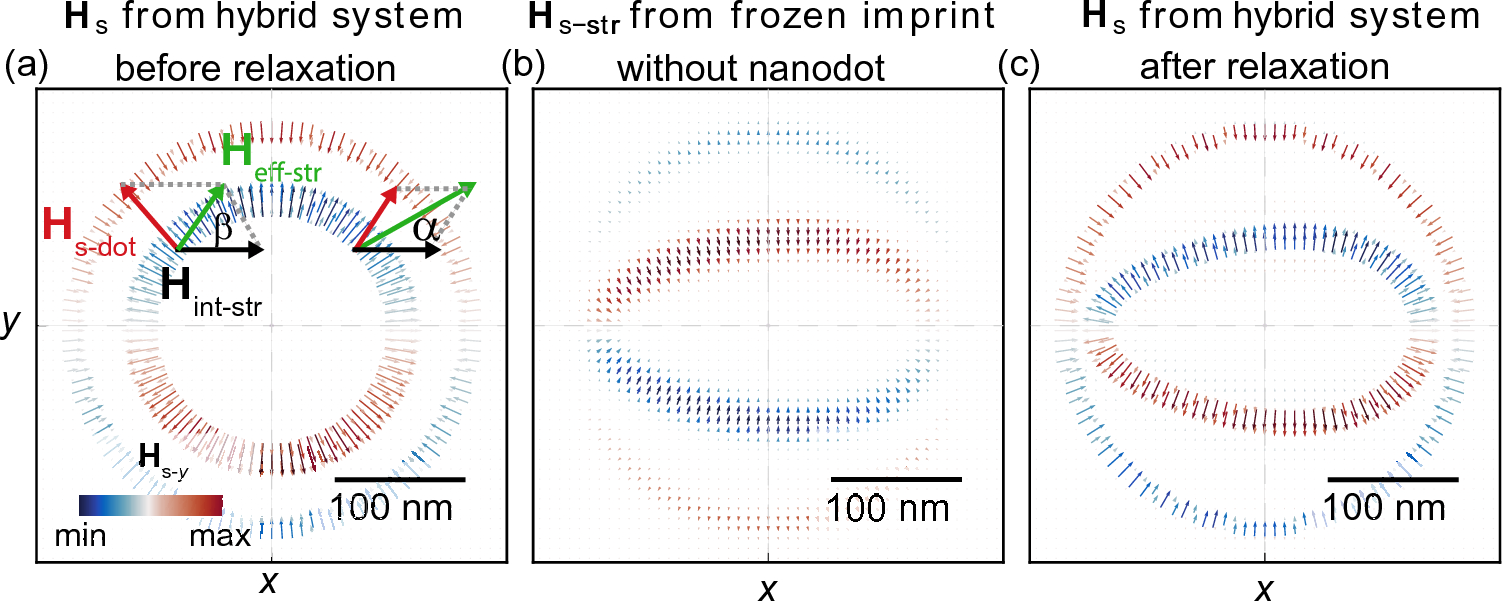

The normalized to maximum value magnetostatic stray-field distribution calculated in the space between the nanodot and the stripe (\(z=6.5\) nm) for \(D=1.6\) mJ/m\({^2}\) generated by: (a) the nanodot with a circular skyrmion, (b) the imprint, and (c) in the hybrid system after relaxation. Vertical and horizontal dashed lines indicate 0 of the x and y-axes, respectively. The color scale represents the intensity of the y-component of the \(\textbf{H}_{\text {s}}\) magnetostatic field.
