Figure 3
From: On the local warming potential of urban rooftop photovoltaic solar panels in cities

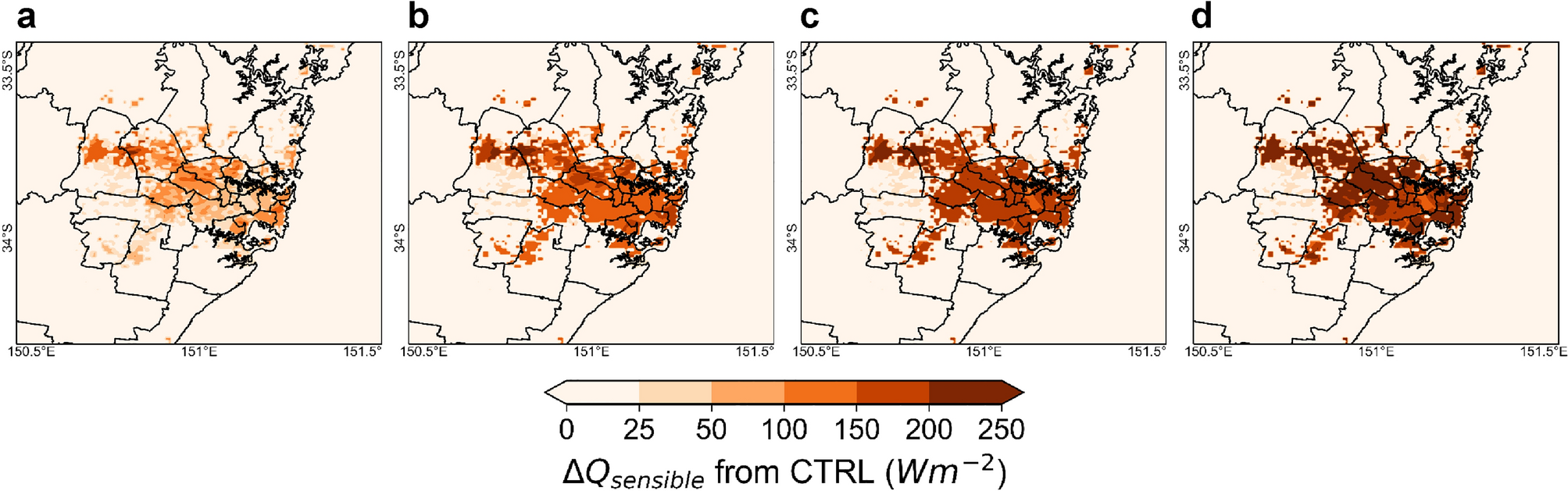

Increase of sensible heat flux at peak hour (14:00 LT) for (a) PVSPs 25%, (b) PVSPs 50%, (c) PVSPs 75%, and (d) PVSPs 100%. This map has been created from building rooftop with PVSP scenarios minus cool roofs without building rooftop PVSPs for the same urban grid cell. This map was prepared by the first author with the help of WRF-Python (https://github.com/NCAR/wrf-python) and does not require any permission from anywhere.
