Figure 8
From: On the local warming potential of urban rooftop photovoltaic solar panels in cities

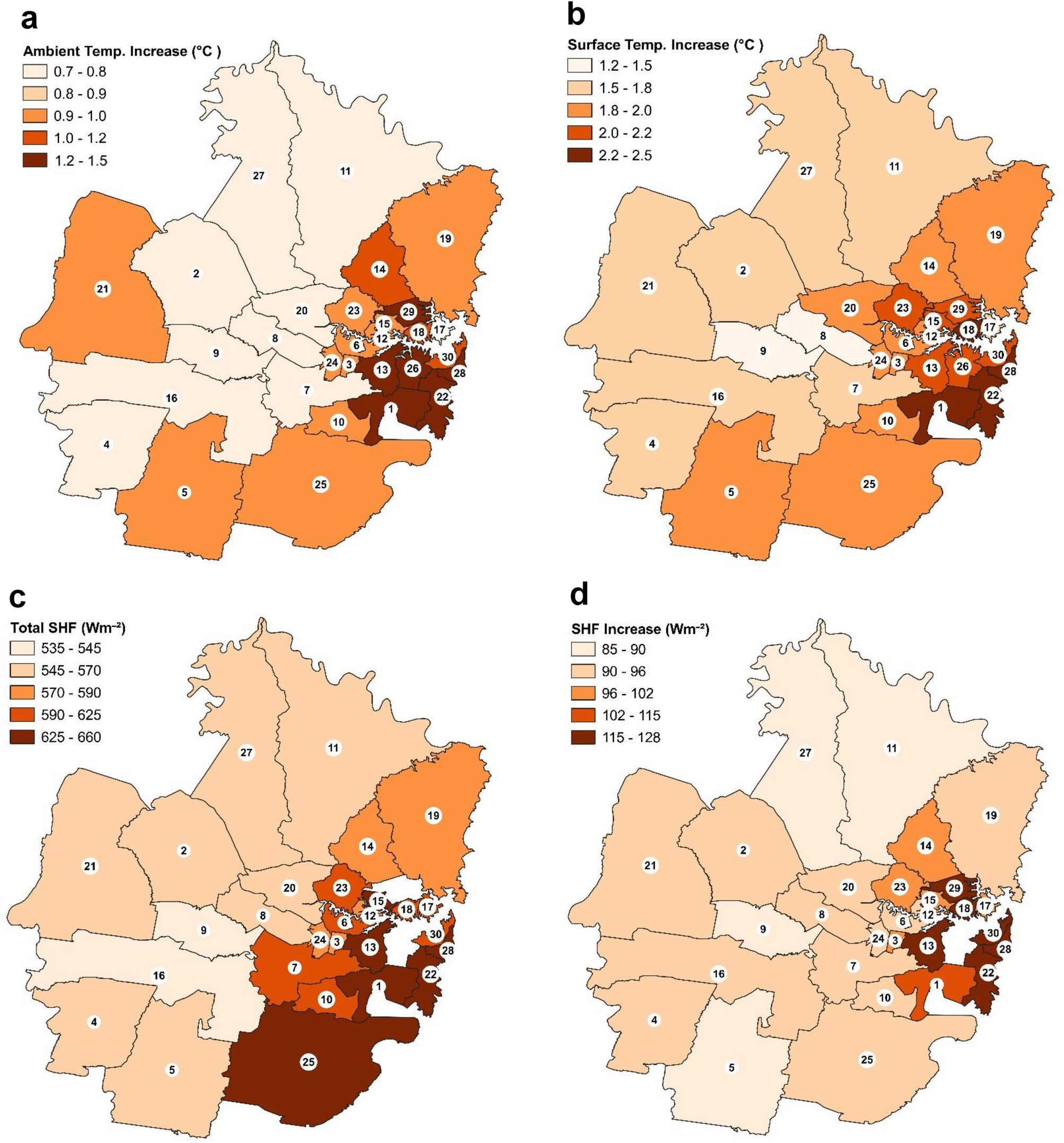

(a-d) Spatiality of local warming in urban districts presented with average value for a typical hottest day when PVSP installed on the cool roofs: (a) daytime average increase in ambient temperature (with PVSP minus without PVSP); (b) daytime average increase in surface temperature (with PVSP minus without PVSP); (c) Release of total sensible heat flux from front and back of PVSP surface during peak hour; (d) Increase in 24-h average sensible heat flux (with PVSP—without PVSP). The urban district is identified by code: (1) Bayside, (2) Blacktown, (3) Burwood, (4) Camden, (5) Campbelltown, (6) Canada Bay, (7) Canterbury-Bankstown, (8) Cumberland, (9) Fairfield, (10) Georges River, (11) Hornsby, (12) Hunters Hill, (13) Inner West, (14) Ku-ring-gai, (15) Lane Cove, (16) Liverpool, (17) Mosman, (18) North Sydney, (19) Northern Beaches, (20) Parramatta, (21) Penrith, (22) Randwick, (23) Ryde, (24) Strathfield, (25) Sutherland, (26) Sydney, (27) The Hills, (28) Waverley, (29) Willoughby, and (30) Woollahra. This map was prepared by the first author with the help of ArcGIS 10.4 (http://www.esri.com/software/arcgis) and does not require any permission from anywhere.
