Figure 8
From: Investigation of microstructural failure in the human cornea through fracture tests

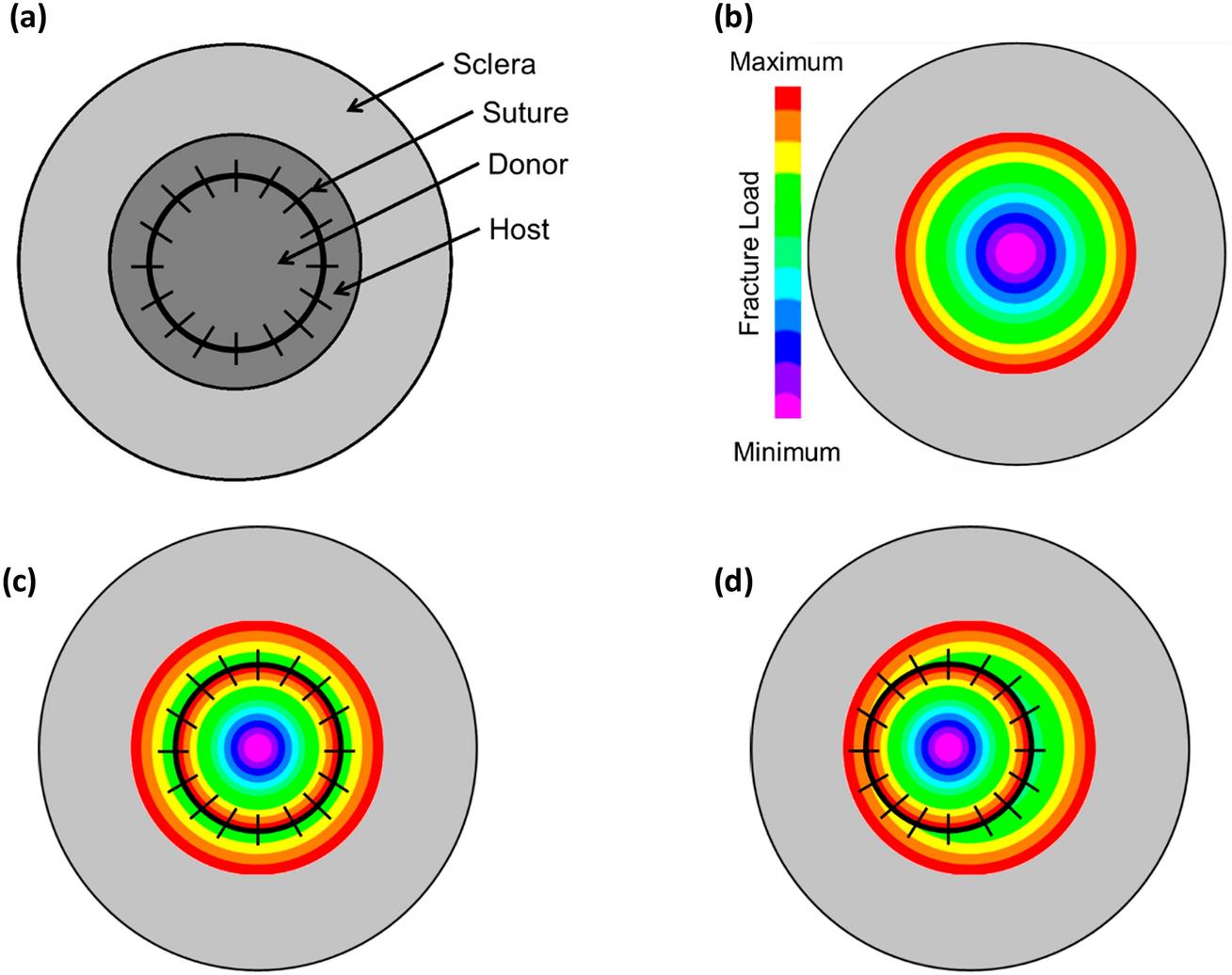

(a) Representation of post PK cornea with sutures, (b) fracture toughness in trouser tear mode mapped onto the human cornea, (c) ideal PK condition with sutures, and (d) when the location of PK is offset in one direction.
