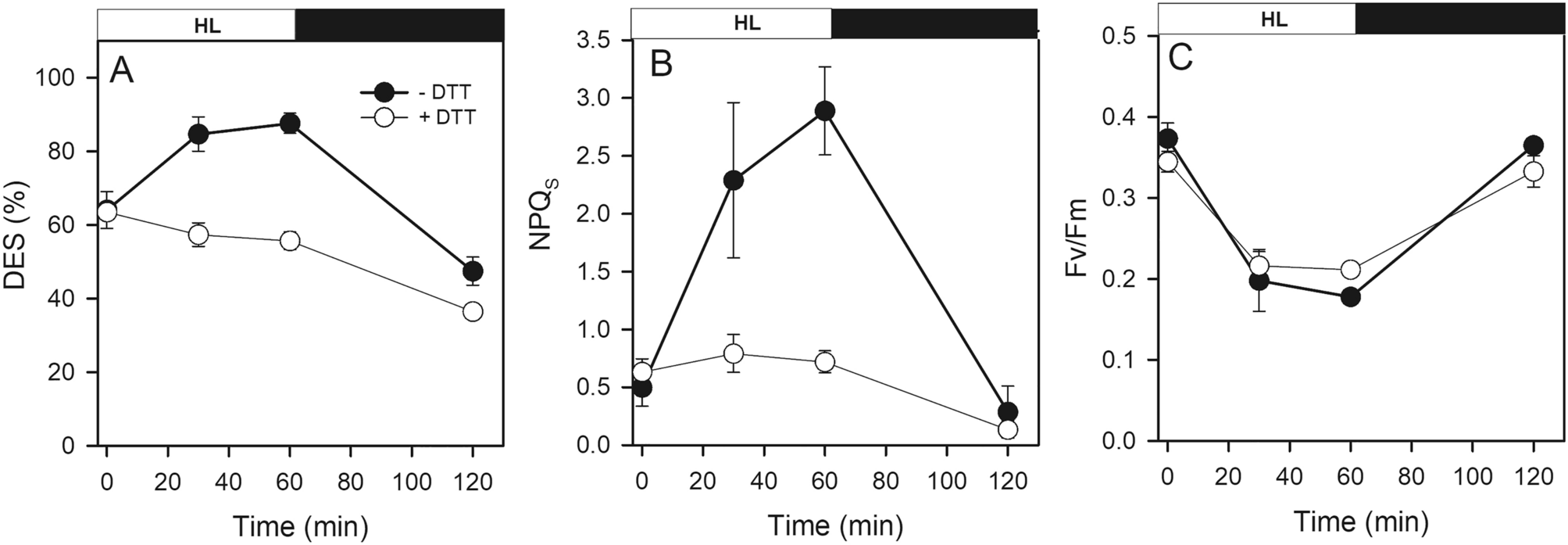

Figure 5
Time dependent change in (A) DES, (B) NPQs, and (C) Fv/Fm in T. lutea cells under P starvation during a 60 min light (700 µmol photons m−2 s−1)/60 min dark experiment in the presence (open circles) and absence (closed circles) of DTT. Each data point is the mean of 3 independent cultures, error bars represent standard deviations.
