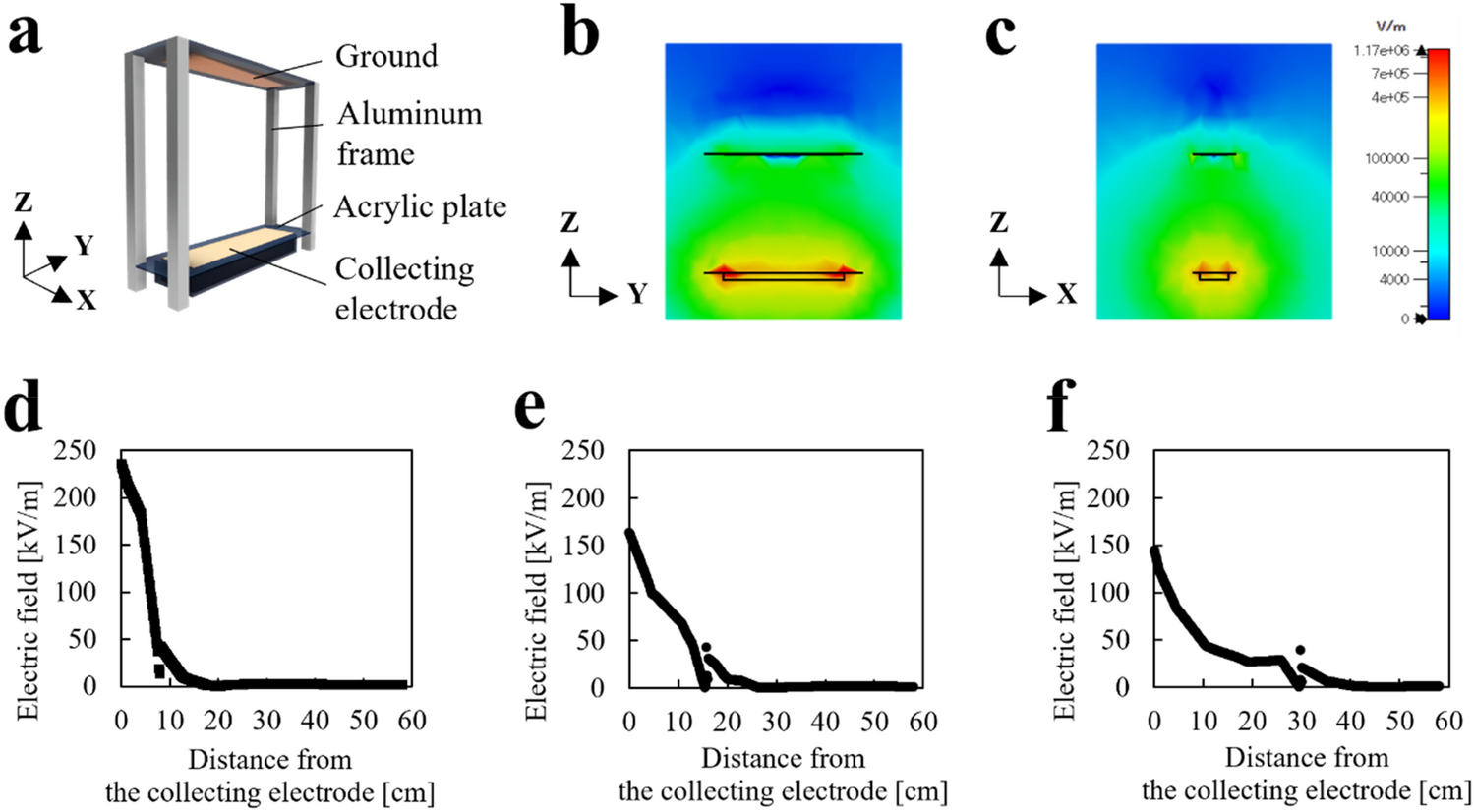

Figure 2

(a) Simulation model. (b,c) Simulation result of the device with a height of 30 cm. (d–f) Electric field intensity at the distance from the collecting electrode surface. The device-height was 8, 16, and 30 cm for (d), (e), and (f), respectively.
