Figure 5

From: Multispectral sensor fusion in SmartWatch for in situ continuous monitoring of human skin hydration and body sweat loss

Figure 5

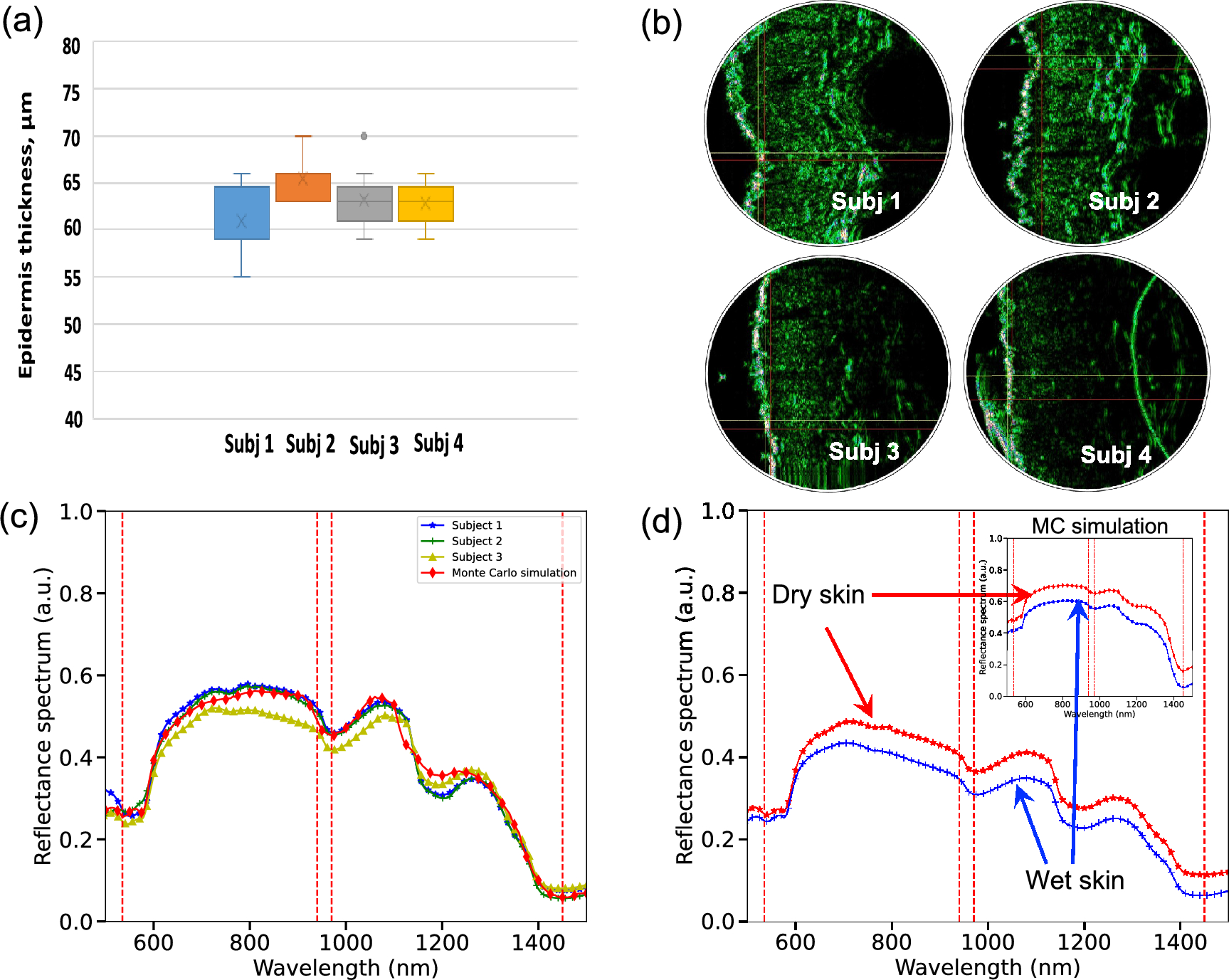

Skin measurements using laboratory grade equipment. An example of evaluated thicknesses (a) and ultrasound images (b) for test subjects for dorsal surface of the wrists of the left hand; MC simulated human skin reflectance spectra compared with the in vivo measurements for several Caucasian skin types (c); MC simulations compared with measurements for wet skin for the entire spectral profile (d).
