Figure 7
From: Insights into the microRNA landscape of Rhodnius prolixus, a vector of Chagas disease

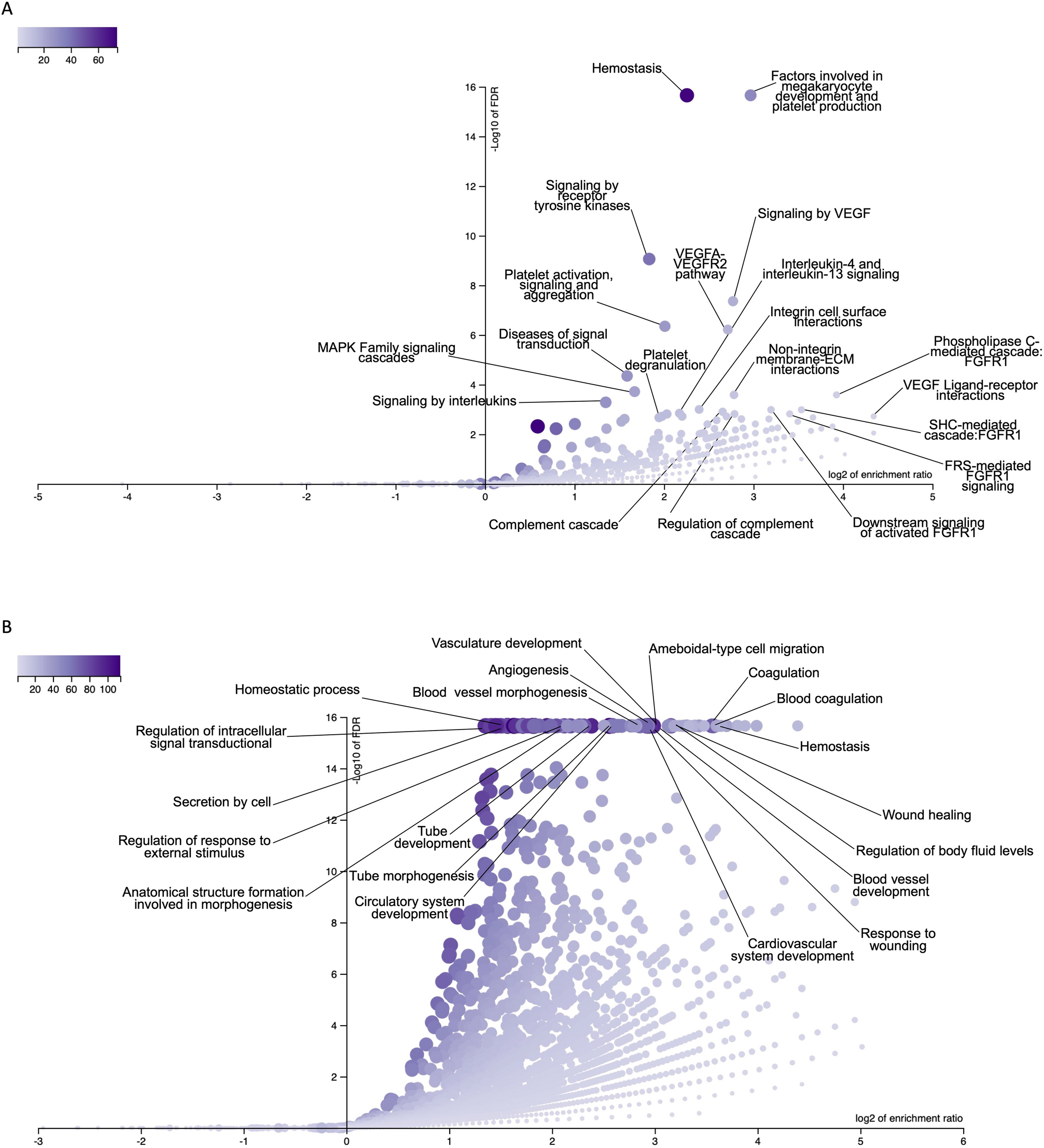

Enriched pathways and Gene ontology Biological Process terms related to genes targeted by the top eight most highly expressed miRNAs from Rhodnius prolixus salivary glands. (A) Enriched pathways. The horizontal axis represents the Log2 of the enrichment ratio. The vertical axis represents the − Log10 value of the FDR rate. The size and color of the dots are proportional to the size of the category. The most significant pathways are towards the top. Especially meaningful categories for anti-hemostatic salivary function within the TOP 20 functional categories with FDR < = 0.05 are labeled. (B) Enriched set of terms from Geneontology Biological Process. The horizontal axis represents the Log2 of the enrichment ratio. The vertical axis represents the − Log10 value of the FDR rate. The size and color of the dots are proportional to the size of the category. The most significant pathways are towards the top. The TOP 20 terms with FDR < = 0.05 are labeled.
