Figure 6
From: Comparison of genome replication fidelity between SARS-CoV-2 and influenza A virus in cell culture

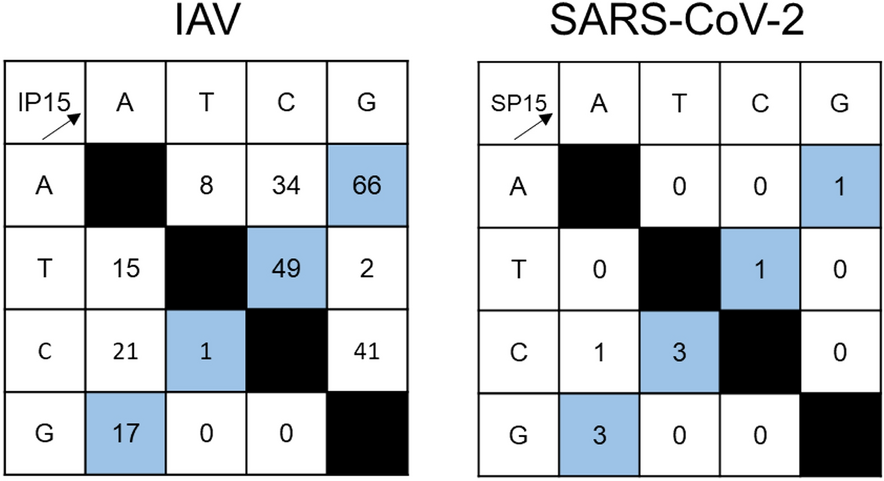

Nucleotide substitution in IAV and SARS-CoV-2 after 15 serial passages. Nucleotide substitutions were counted in IAV and SARS-CoV-2 after 15 serial passages. IP15 and SP15 indicate 15 serial passage lines of IAV and SARS-CoV-2, respectively. Colours indicate the type of substitutions: blue, transition; white, transversion.
