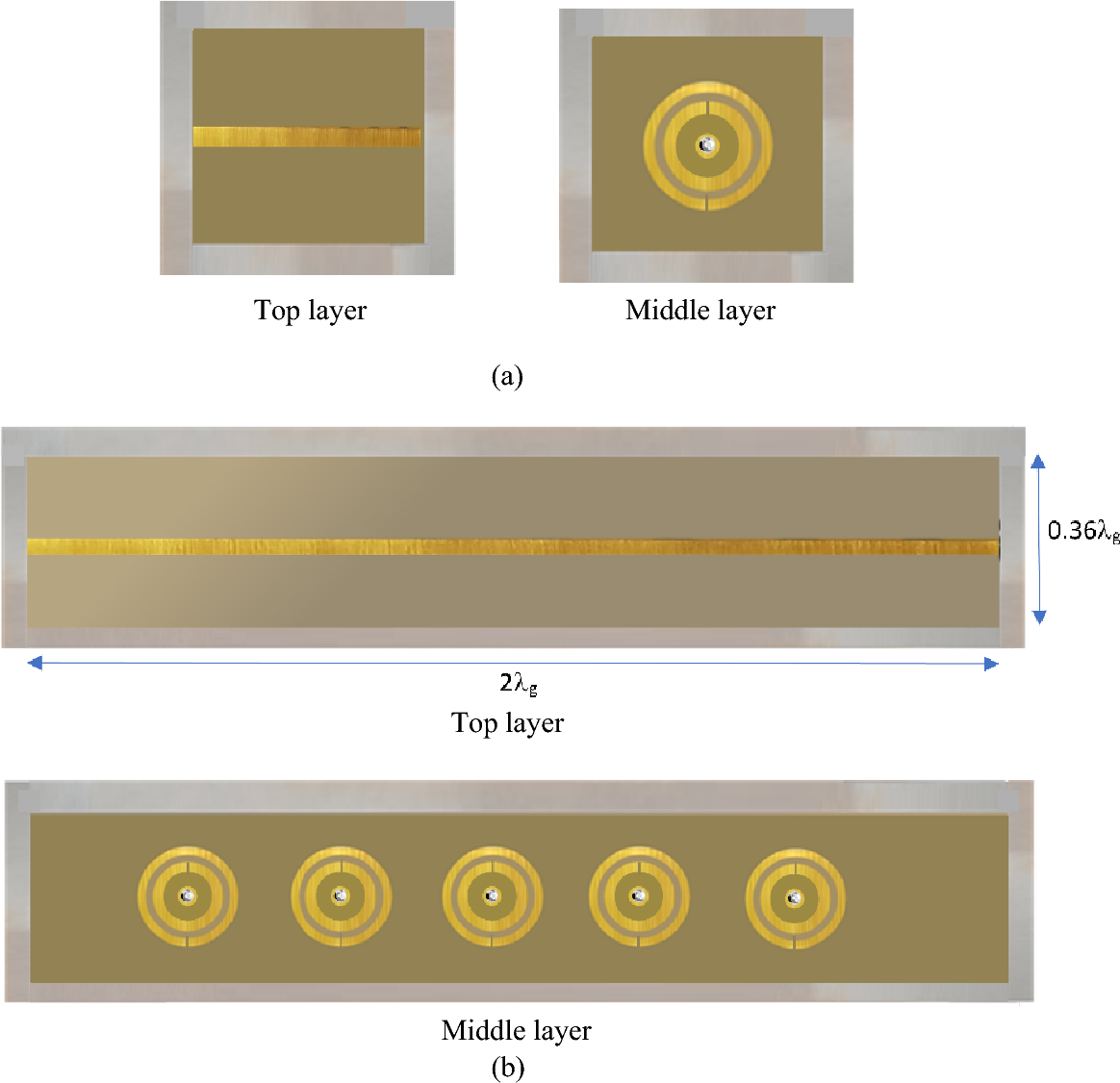

Figure 6
The fabricated 2-D bandstop filter based on the proposed metamaterial inspired mushroom type EBG unit-cell, (a) top transmission line and middle layer of a single unit-cell EBG structure, and (b) top transmission line and middle layer of the five unit-cell EBG structure where λg is at the 3-dB cut-off frequency of 12.5 GHz.
