From: Dysregulation of testis mRNA expression levels in hatchery-produced vs wild greater amberjack Seriola dumerili

Figure 8

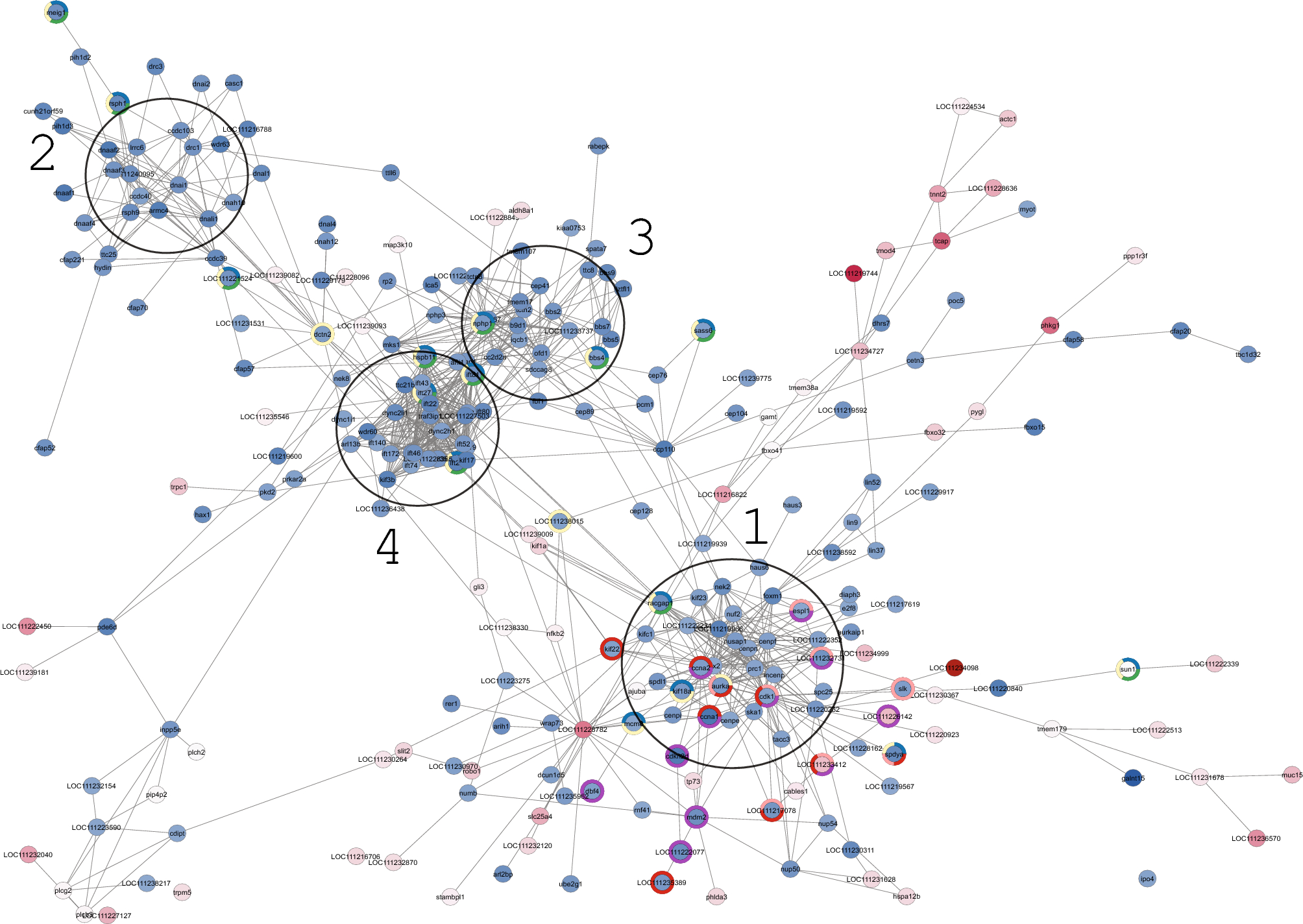

Protein–Protein interaction (PPi) network in DysF vs WILD. The network was built using a confidence protein interaction (score = 0.7). Node background indicates gene upregulation (red, log2FC > 1.5) or downregulation (blue, log2FC < 1.5). Node contour indicates biological categories: male gamete generation (blue), gamete generation (yellow) spermatogenesis (green), KEGG: Progesterone-mediated oocyte maturation (red), KEGG: Oocyte meiosis (pink) KEGG: Cell cycle (purple). Circles 1–4 are arbitrary representations of the main protein-protein interaction groups.
