From: Structure and conductivity of ionomer in PEM fuel cell catalyst layers: a model-based analysis

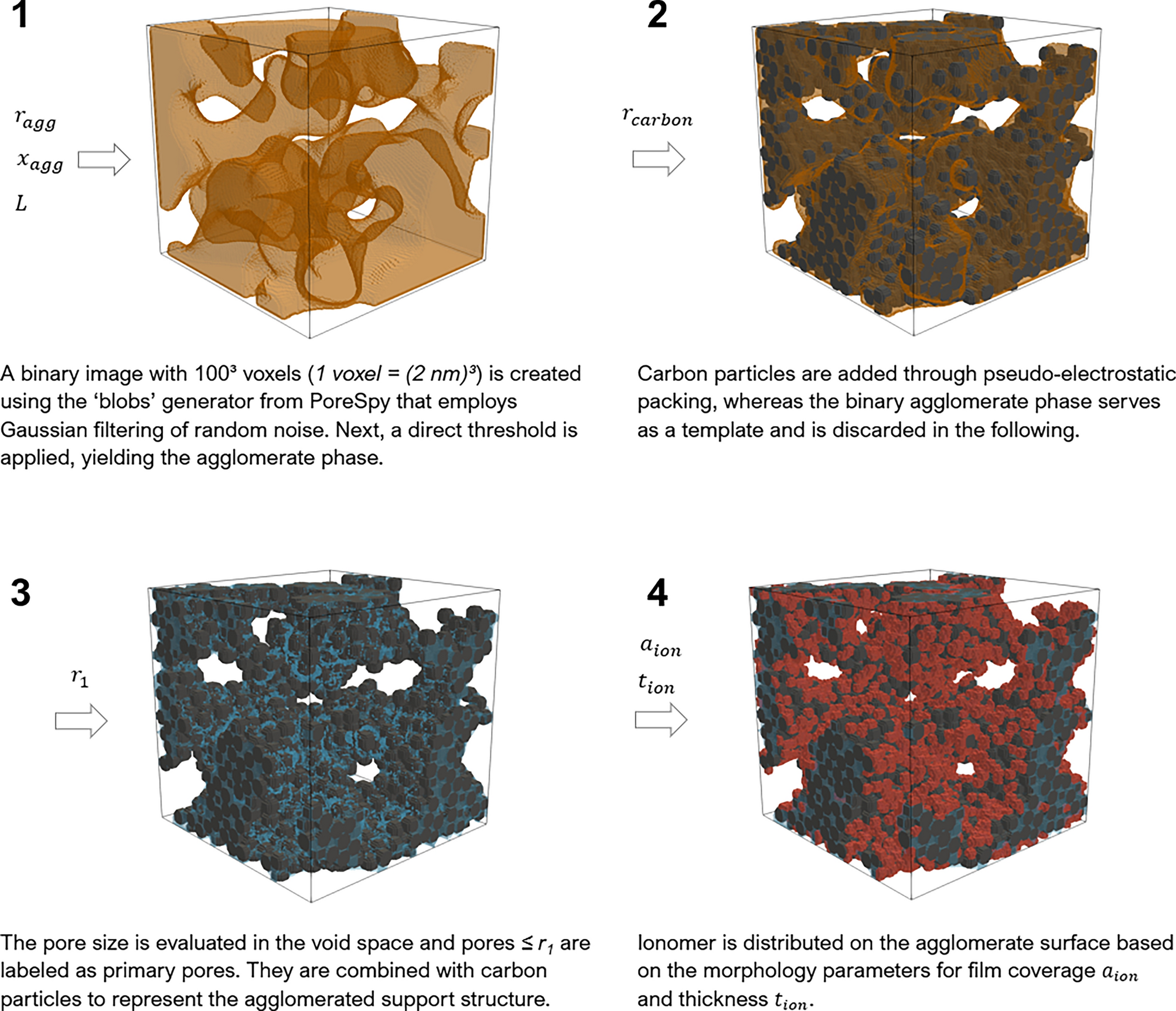

The workflow for image generation follows four steps: (1) generation of a binary image, based on tomographic data, (2 + 3) reconstruction of the agglomerate structure, resolving carbon particles and primary pores, and (4) deposition of ionomer onto the agglomerate surface.
