Figure 3 | Scientific Reports

Figure 3

From: Water stress memory in wheat/maize intercropping regulated photosynthetic and antioxidative responses under rainfed conditions

Figure 3

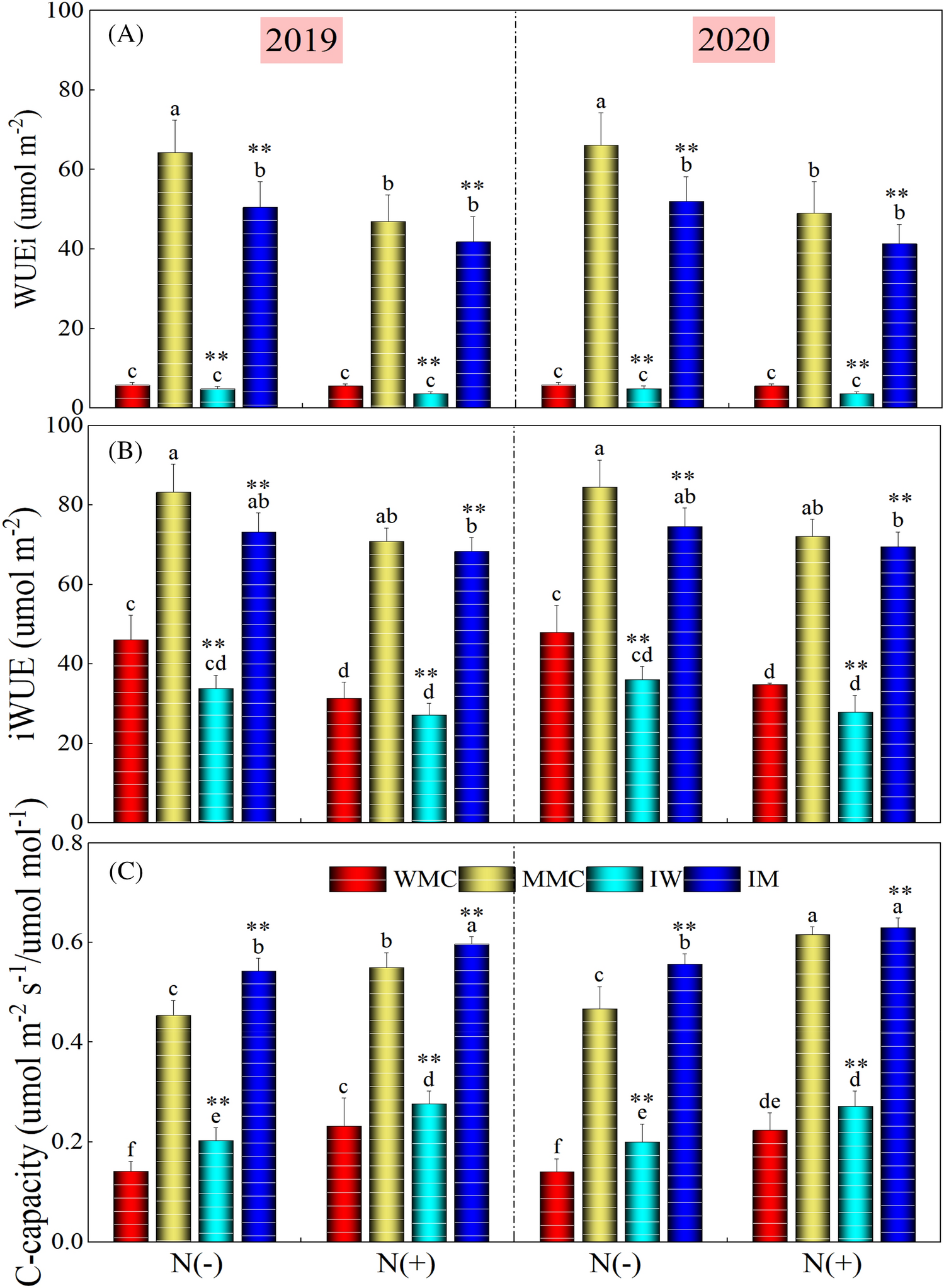

WUEi, iWUE and C-Capacity under different intercropping treatments (maize monocrop (MMC), wheat monocrop (WMC), intercropping maize (IM), and wheat (IW) crops) and nitrogen treatments in 2019 and 2020. Different lower-case letters show a significant difference among intercropping treatments under both N rates. “*” above bars indicates a significant difference between the monocropping and intercropping treatments at *P < 0.05; **P < 0.01. Note: WUEi and iWUE indicate the intrinsic and instantaneous water use efficiency, respectively.
