Figure 4 | Scientific Reports

Figure 4

From: Genome-wide study of globally distributed respiratory syncytial virus (RSV) strains implicates diversification utilizing phylodynamics and mutational analysis

Figure 4

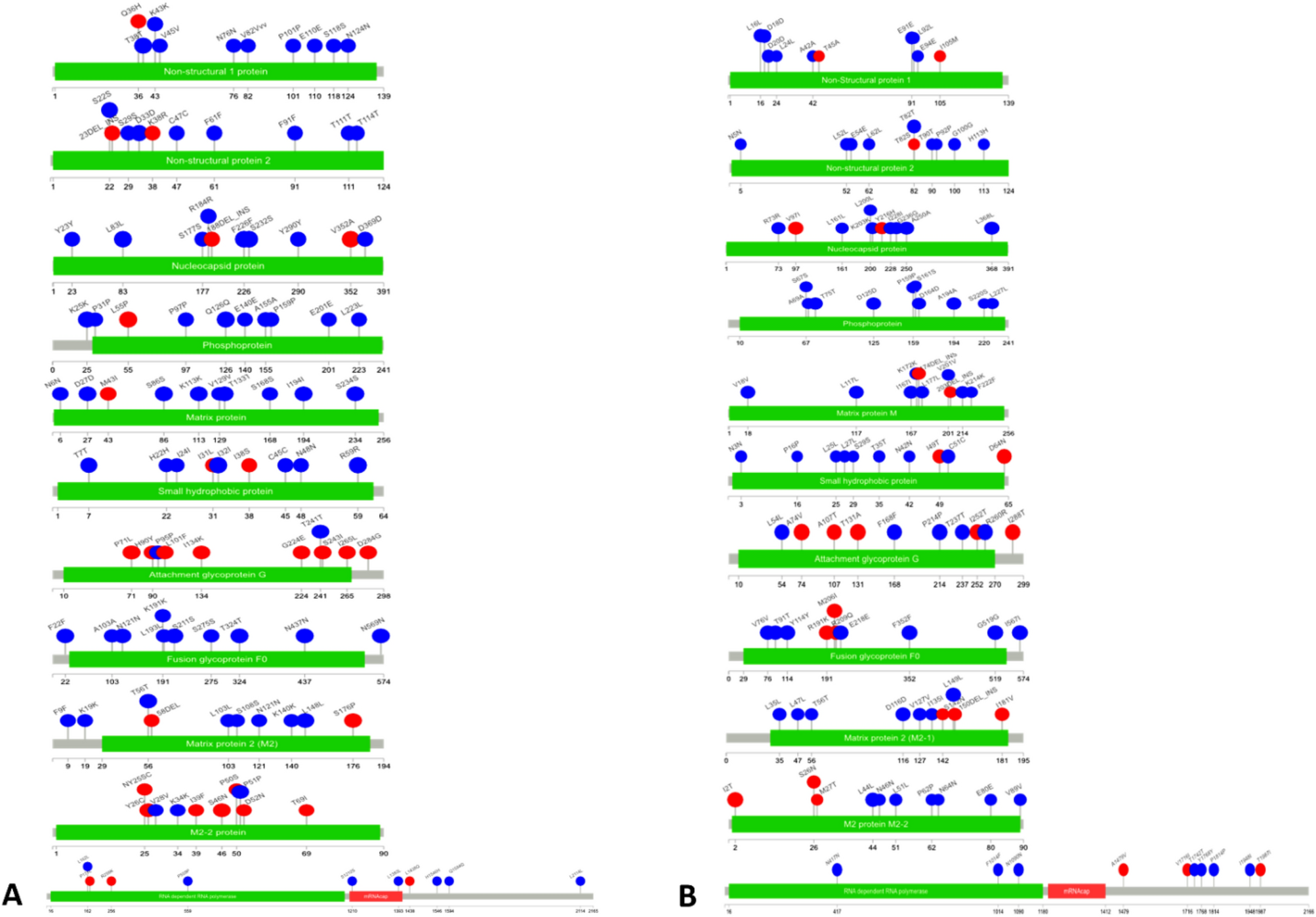

The lollipop plot represents all possible mutations in RSV A (A) and RSV B (B). Each gene is represented by the green bar, and each mutation within that gene is shown on the lollipop as a single-letter change in the coding for an amino acid. Lollipops in blue represent synonymous mutations while those in red represent missense mutations.
