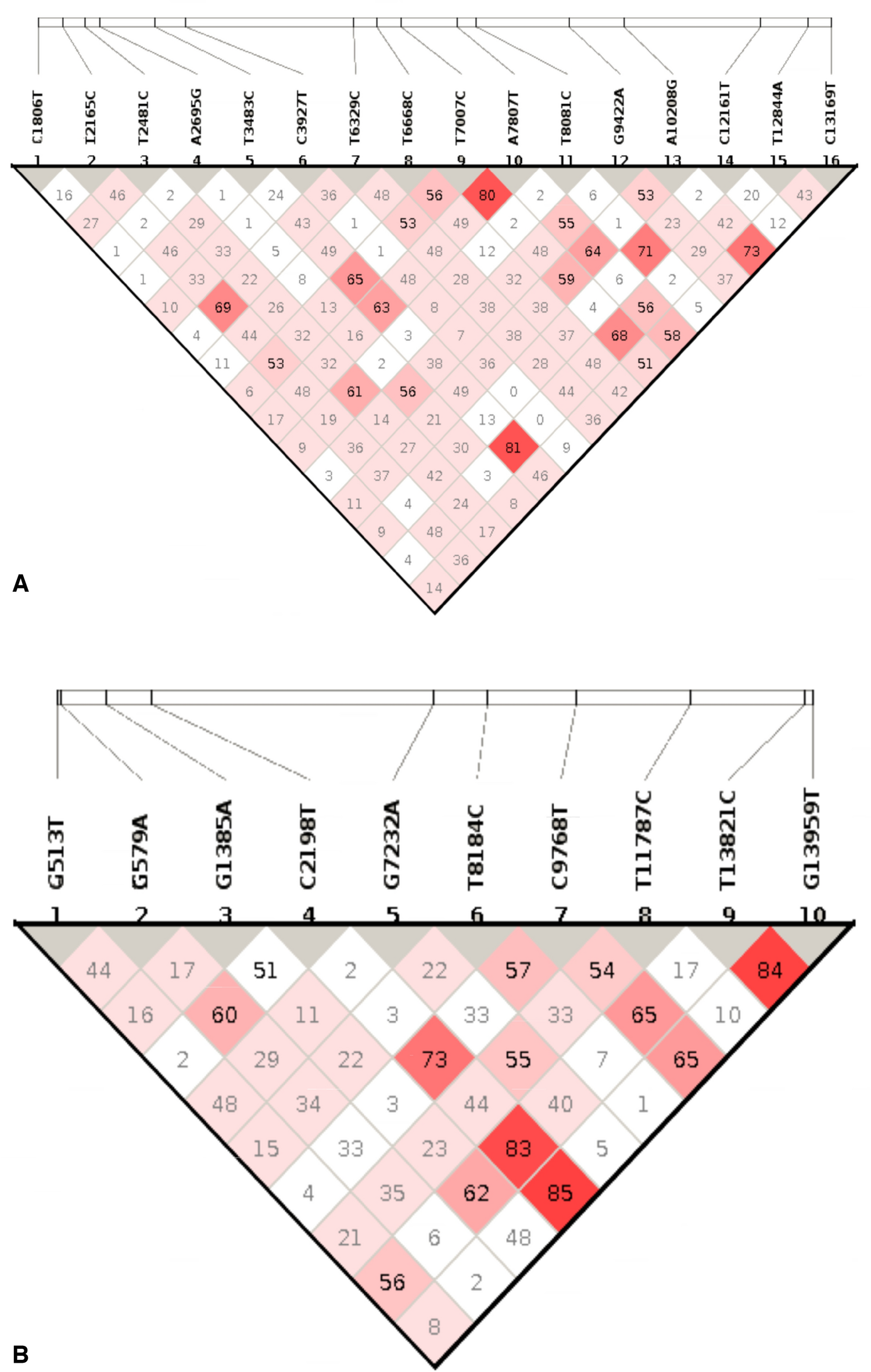

Haploview's determination of LDs between SNPs in RSV A (A) and RSV B (A) is shown in the haplotype block. As the association between the LDs grows with colour, from white (the weakest) to crimson (the highest), the colour serves as a reflection of the LDs' true powers. The bases of the genome that have been changed due to mutations are marked in the text at the top of the picture.
