Figure 3
From: Synthesis of novel antibacterial nanocomposite CuO/Ag-modified zeolite for removal of MB dye

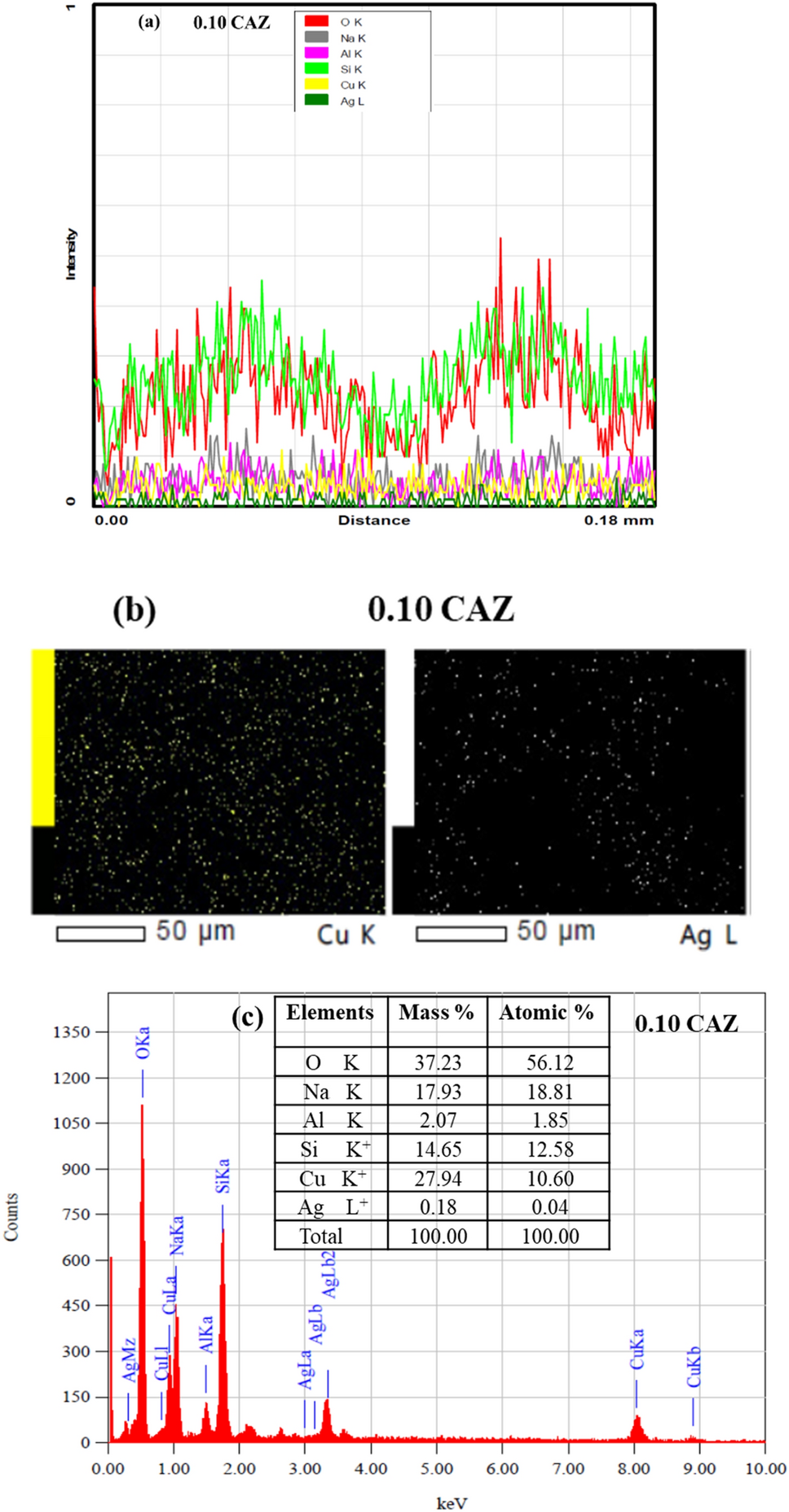

EDX results (a) analysis profile of elemental compositions of 0.10 CAZ (O, Na, Al, Si, Cu, and Ag), (b) elemental mapping of Cu and Ag nanostructure in 0.10 CAZ and (c) spectrum and Table of the atomic percentage of elements.
