Figure 2
From: Benchmarking of force fields to characterize the intrinsically disordered R2-FUS-LC region

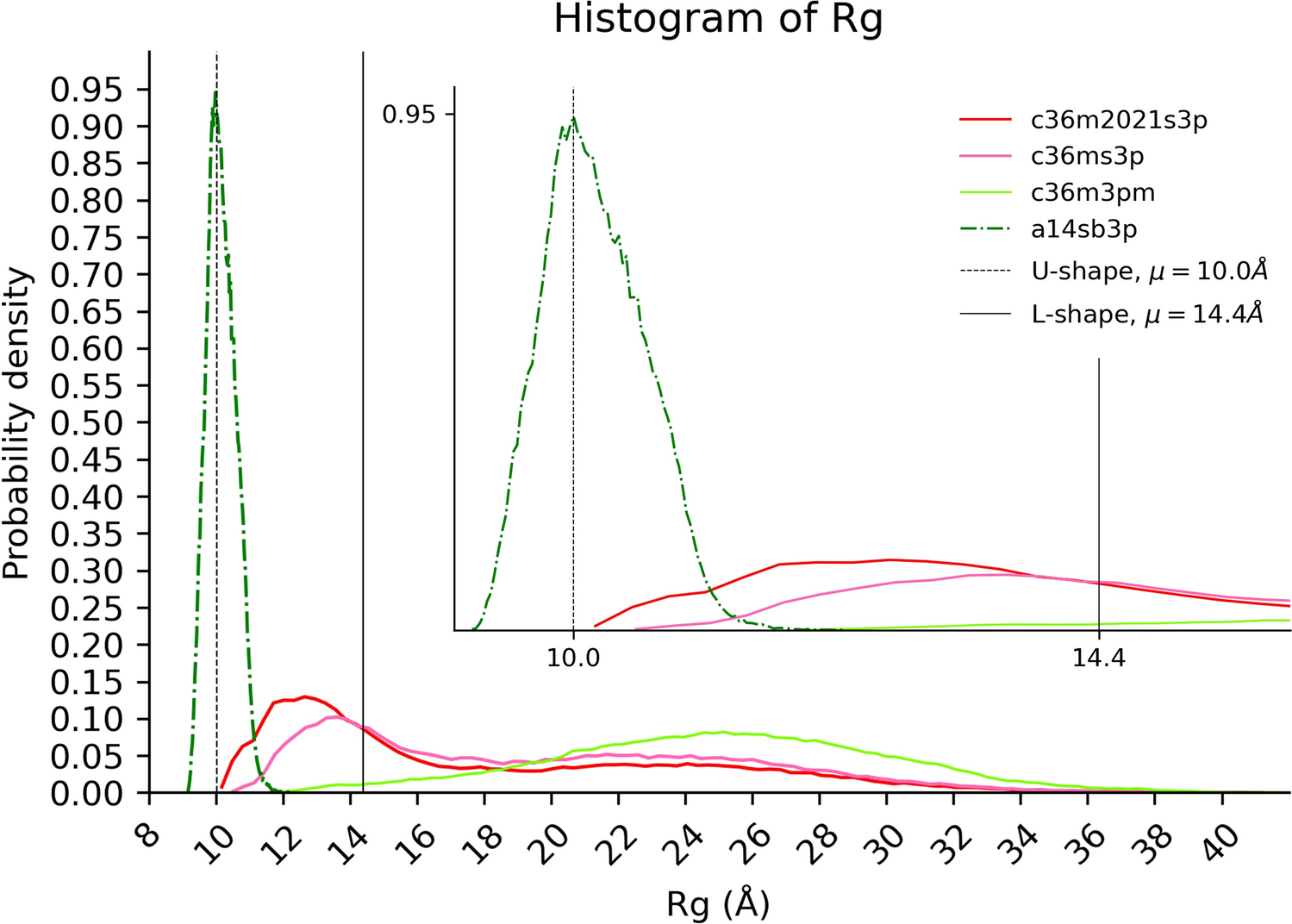

Distribution of the Radius of gyration (Rg). The top two ranking FFs for the final Rg score (Table 2) are C36m2021s3p (red) and c36ms3p (pink). These FFs can generate compact and extended conformations covering both the U and L-shaped Rg’s. However, a14sb3p (green) sampled compact conformations only (shown in the inset for a zoomed-in view). On the other hand, c36m3pm (light green) generated extended conformations. Both FFs rank at the bottom. Figure was prepared with Matplotlib v3.544 (https://matplotlib.org/).
