From: Resistive switching and battery-like characteristics in highly transparent Ta2O5/ITO thin-films

Figure 10

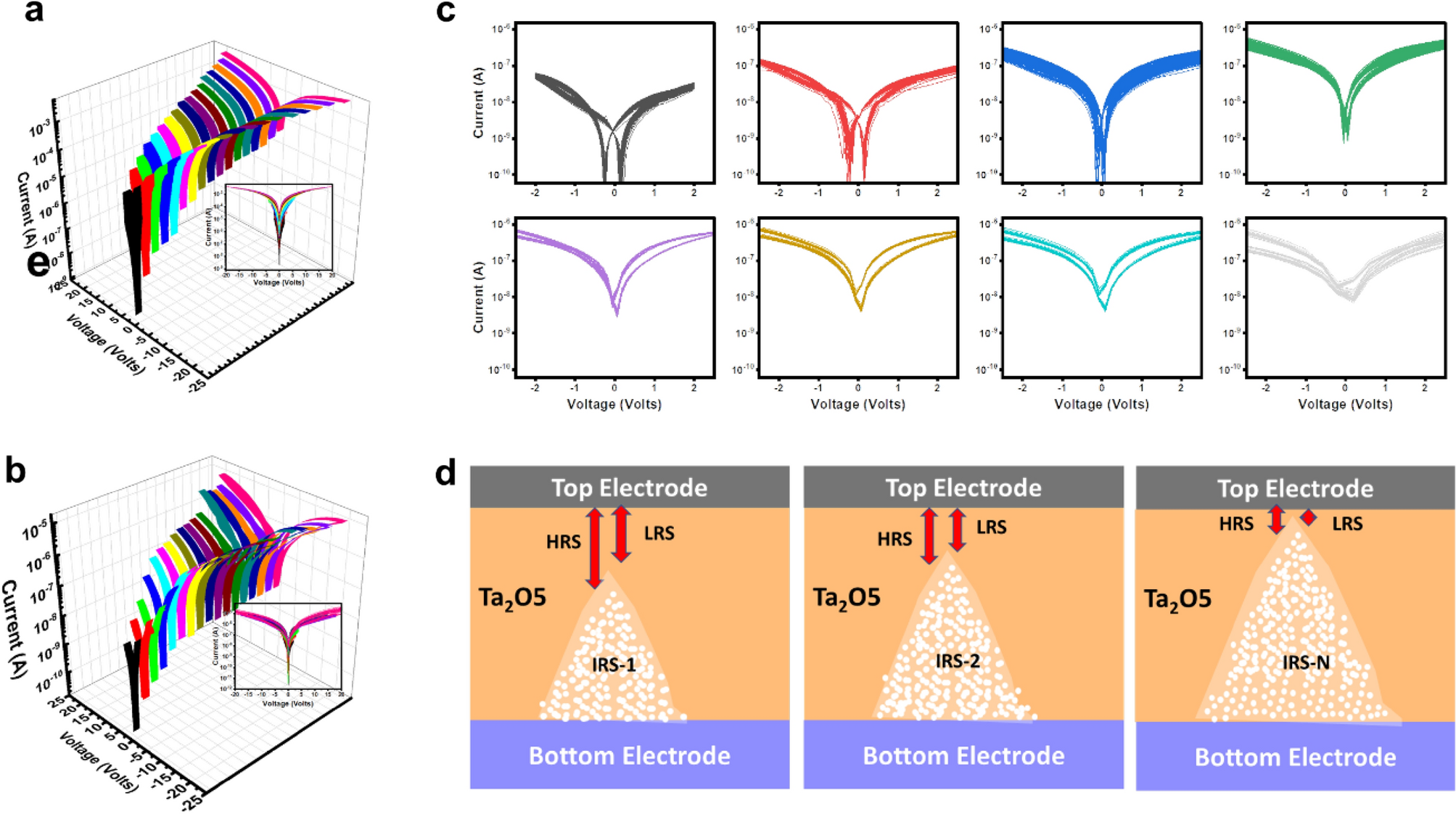

(a,b) I–V curves with increasing operating voltage and compliance current (c) the zoomed graphs showing the two current minima (in thicker films) getting closer, after increasing the range operation voltage and compliance current. (d) The schematic diagram explaining multiple intermediate-resistive-states (IRS) states and the low/high resistive states (LRS/HRS) tuned around each IRS through the modulation of filaments.
