Figure 2

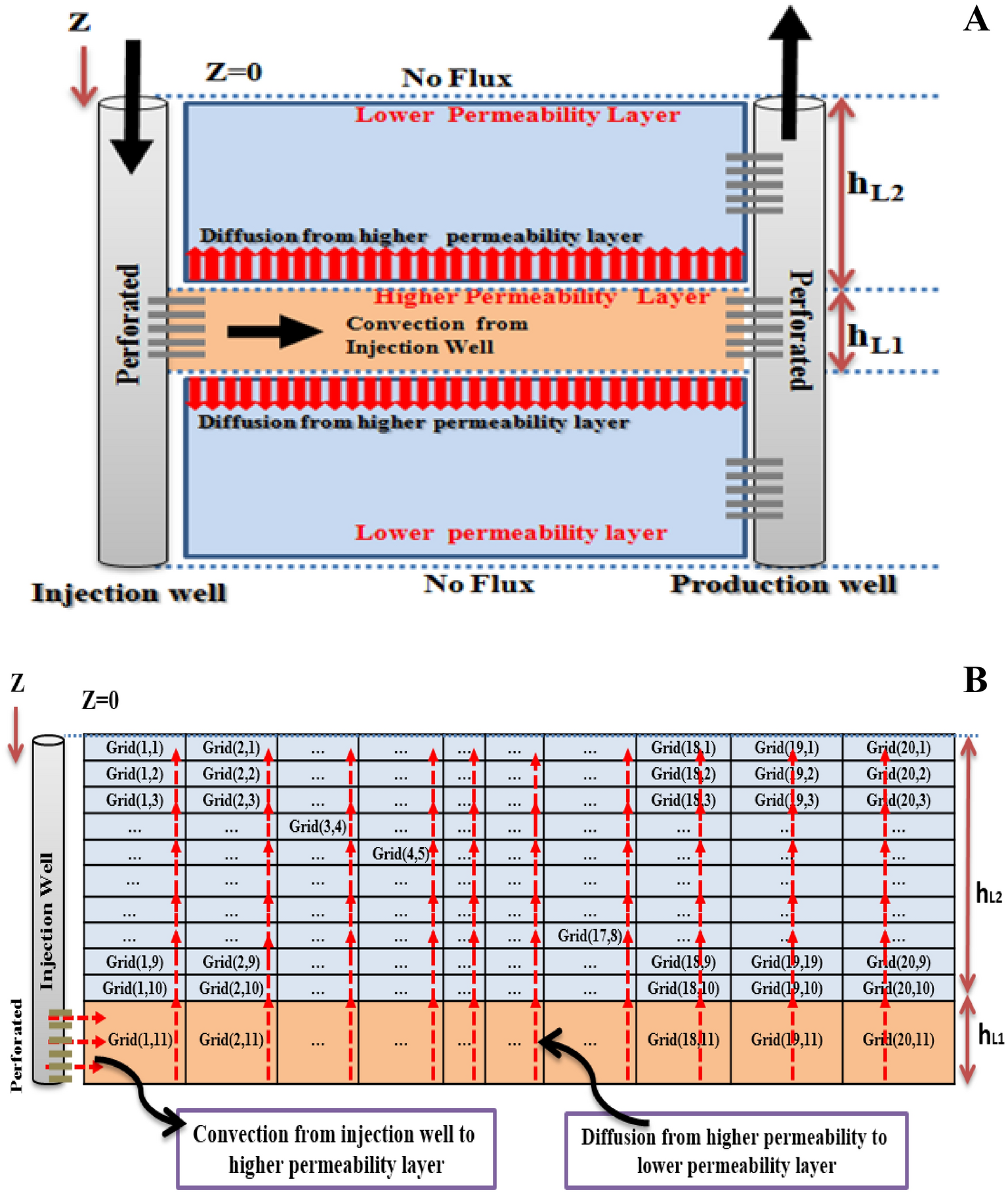

Schematic of case I (A)/Layer discretization for a sample reservoir NL1 = 20 and NL2 = 10. Total number of grids in L1 and L2 are 20 and 200 grids respectively (B).
Figure 2 | Scientific Reports
Schematic of case I (A)/Layer discretization for a sample reservoir NL1 = 20 and NL2 = 10. Total number of grids in L1 and L2 are 20 and 200 grids respectively (B).
