Figure 2

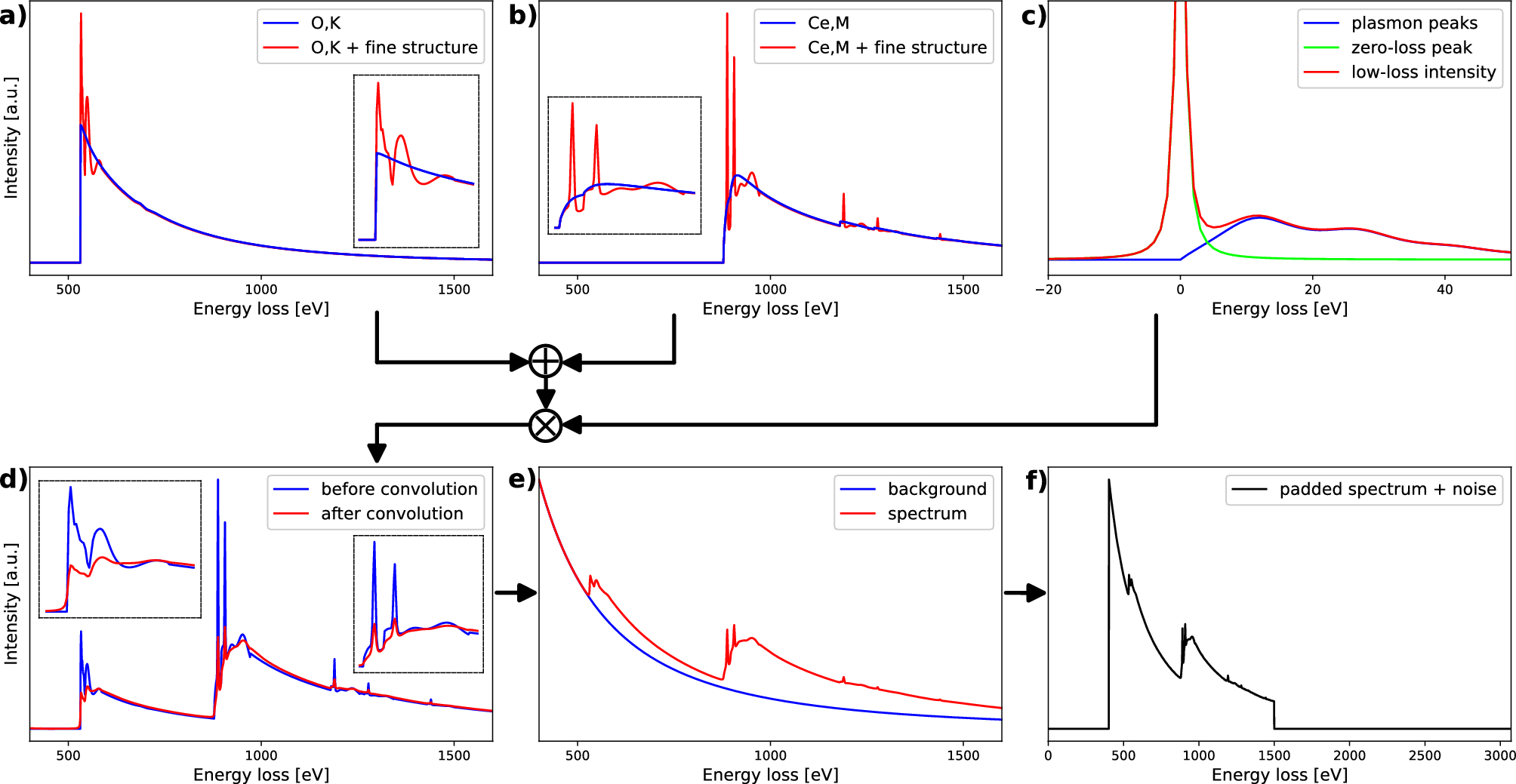

Diagram of the simulation of a \({\text{CeO}}_{2}\) spectrum. (a) and (b) Core-loss edges are calculated from GOS tables and given a generic fine structure. (c) A generic low-loss region is simulated. (d) The summed core-loss edges are convolved by a generic low-loss region. (e) A power law background is added. (f) The final spectrum is normalised, zero padded and Poisson noise is applied.
