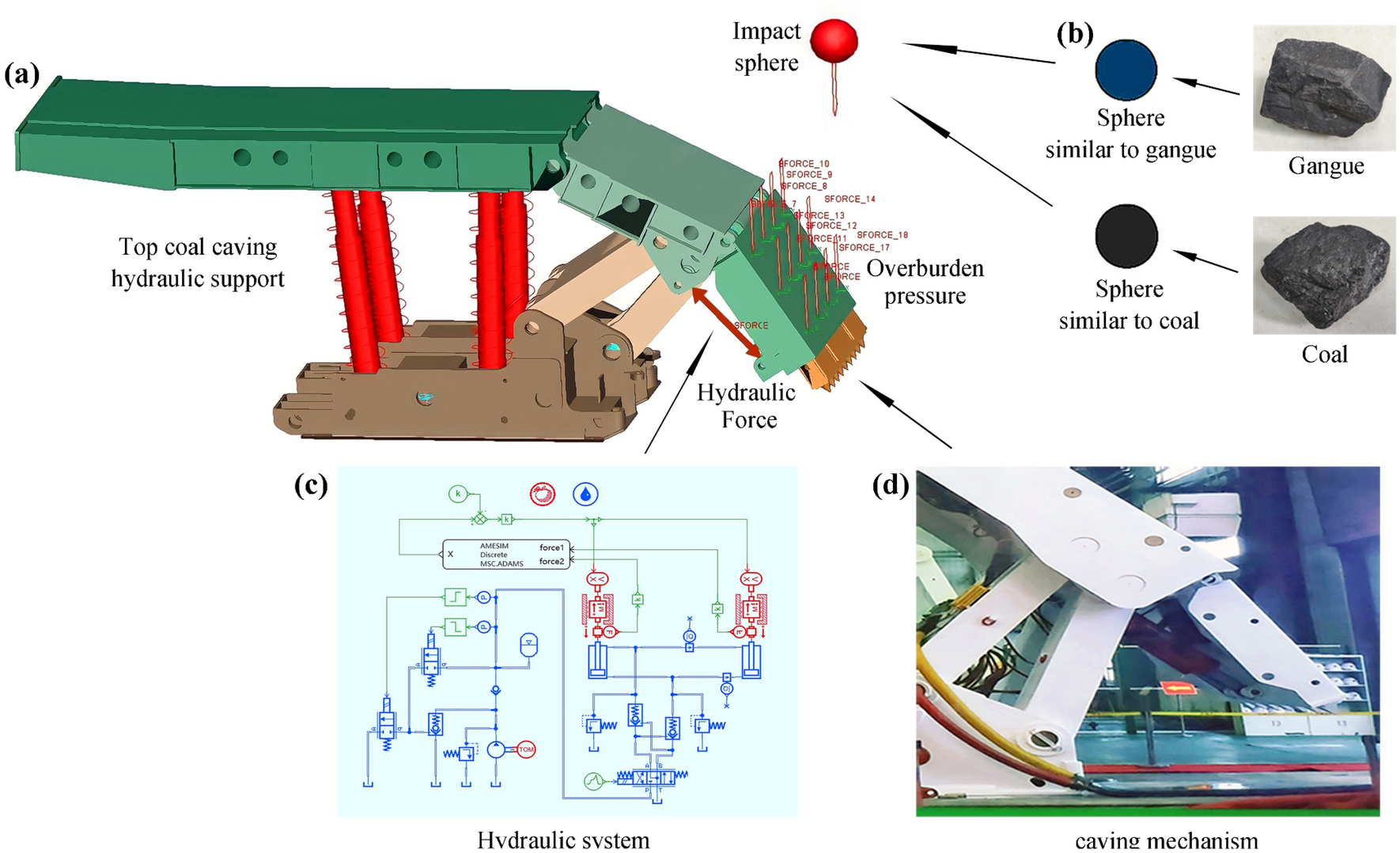

Figure 5

Mechanical–hydraulic co-simulation model. (a) The mechanical structure model of the hydraulic support. (b) Establish the impact sphere model based on real coal and gangue. (c) The hydraulic system provides the hydraulic force, controls the mechanism, and bears the impact load. (d) The actual caving mechanism.
