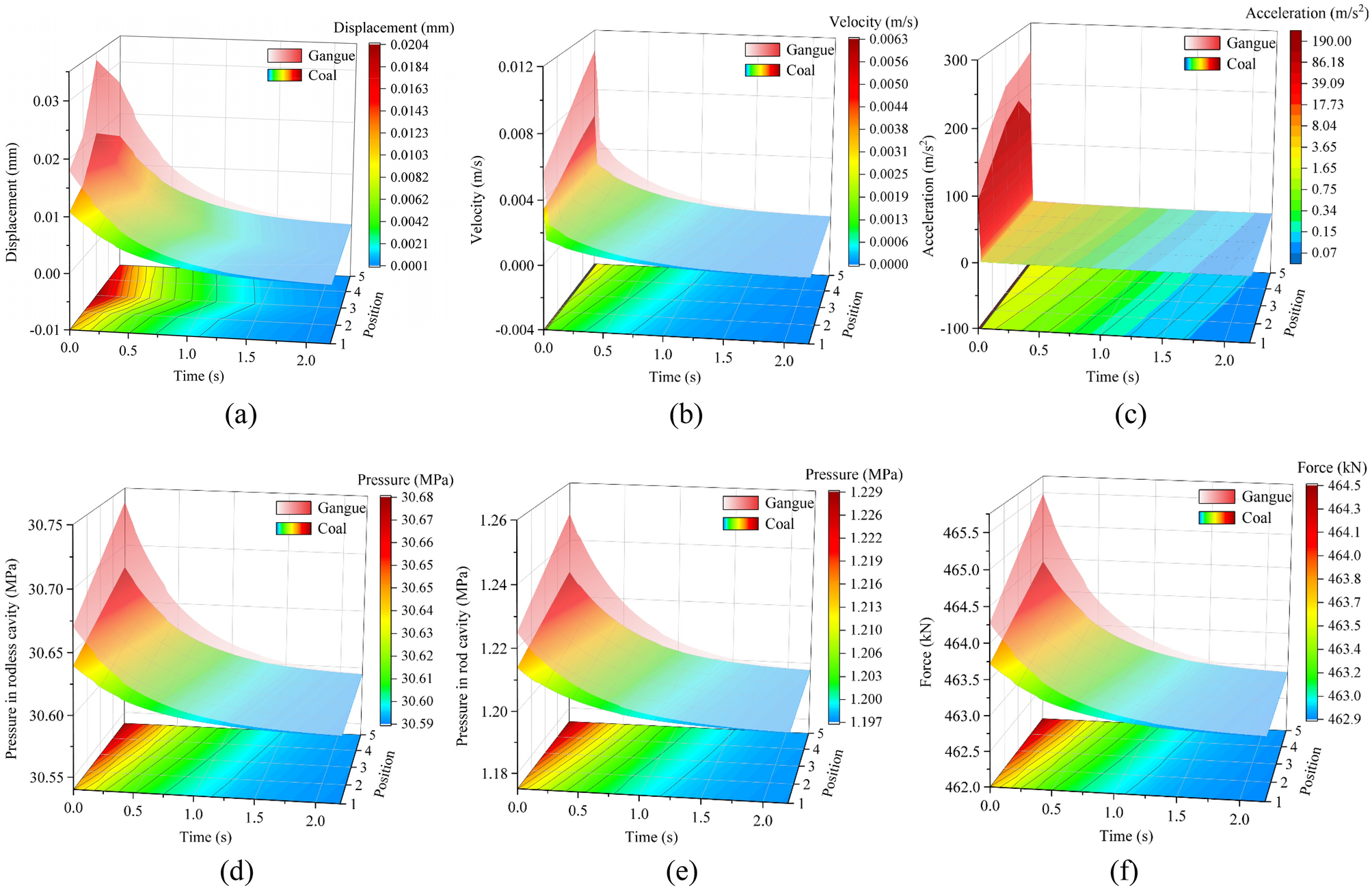

Figure 9

Response difference of caving mechanism at different impact positions: (a) displacement of the tail beam, (b) velocity of the tail beam, (c) acceleration of the tail beam, (d) pressure in rodless cavity, (e) pressure in rod cavity, and (f) support force of the jack.
