Figure 8

From: PDI augments kainic acid-induced seizure activity and neuronal death by inhibiting PP2A-GluA2-PICK1-mediated AMPA receptor internalization in the mouse hippocampus

Figure 8

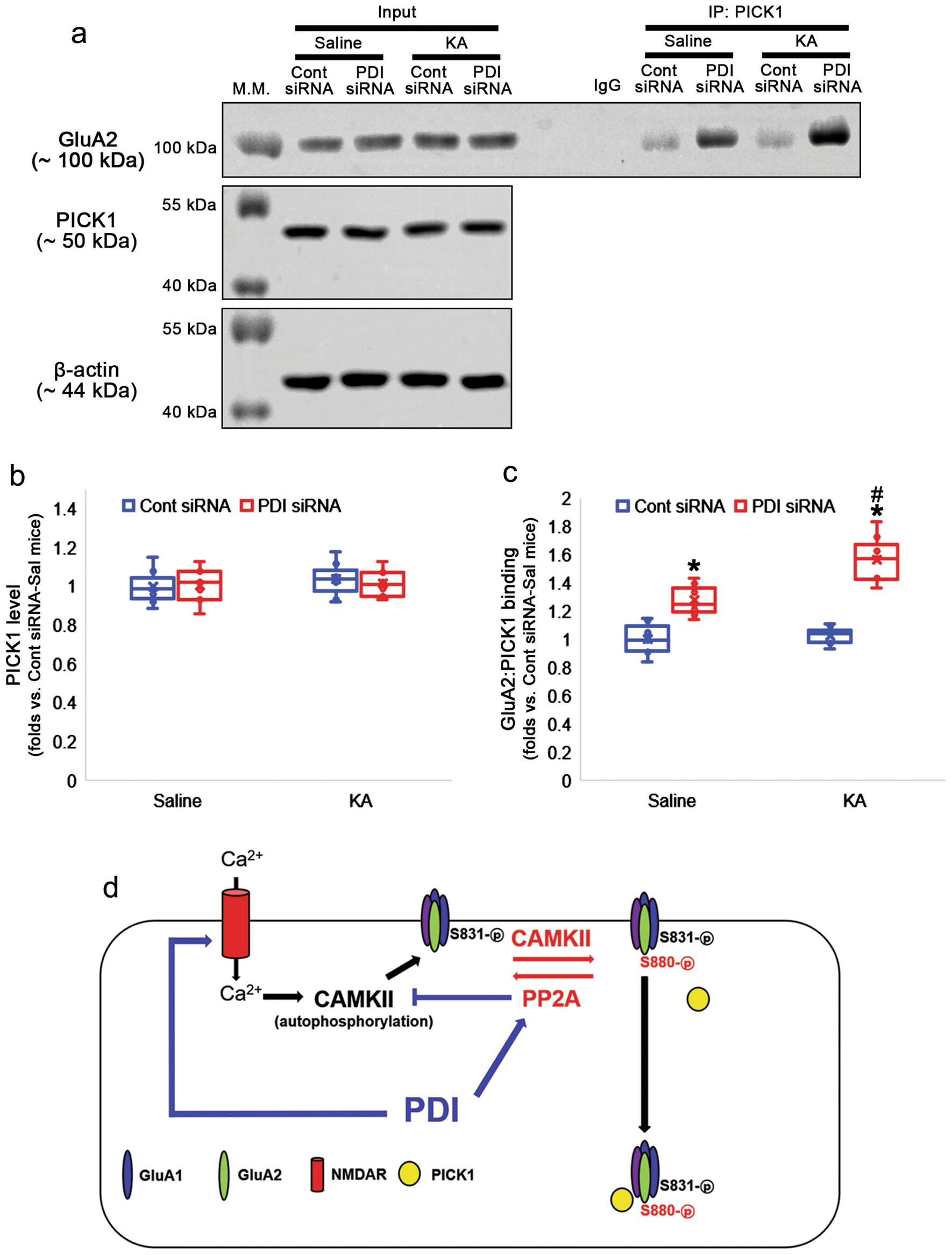

Effects of PDI knockdown on PICK1 bindings to GluA2 in the hippocampus following KA injection. PDI siRNA does not influence PICK1 level in both saline- and KA-treated groups. As compared to control siRNA, PDI siRNA increases GluA2A:PICK1 binding in saline-treated group. Although KA does not affect GluA2:PICK1 binding in control siRNA-infused group, it increases it in PDI siRNA-infused group. (a) Representative Western blot images for the GluA2:PICK1 binding. (b–c) Quantitative analyses of the effects of PDI siRNA on PICK1 level (b) and GluA2:PICK1 binding (c) following KA injection (*,#p < 0.05 vs. control siRNA vs. saline; n = 7, respectively; Kruskal–Wallis test followed by Tukey post-hoc test). (d) Scheme of the role of PDI in AMPAR internalization. PDI may reduce lead to reduction-induced PP2A activation, which would abolish PICK1-mediated AMPAR internalization by dephosphorylating GluA2 S880 and CaMKII T286 sites.
