From: Investigating the electrical crosstalk effect between pixels in high-resolution organic light-emitting diode microdisplays

Figure 3The alternative text for this image may have been generated using AI.

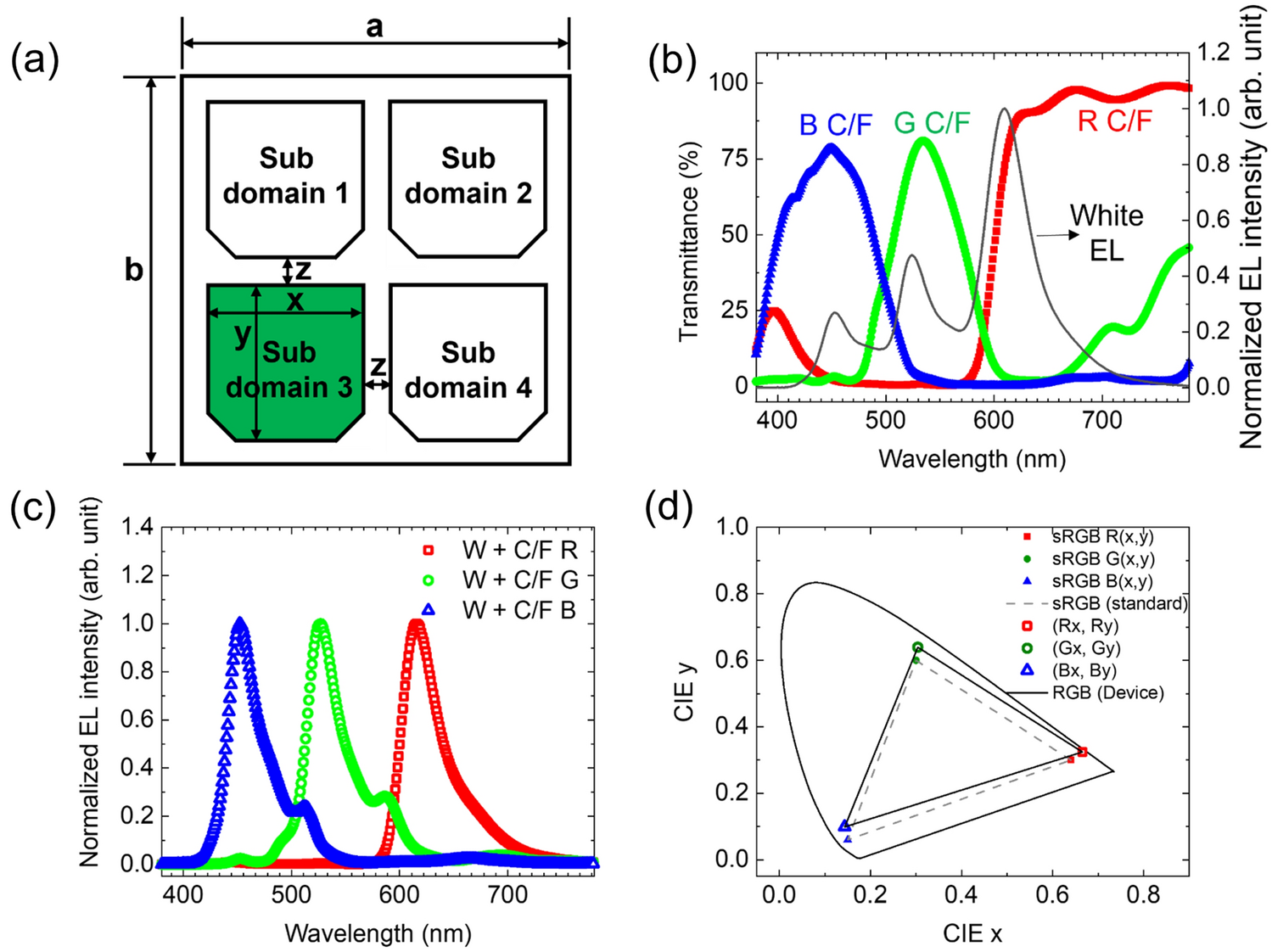

(a) Schematic pixel structure (a: 8.1 μm, b: 8.1 μm, x: 3.4 μm, y: 3.4 μm, z: 0.65 μm) for electrical crosstalk simulation, (b) transmittance of red, green, blue C/Fs and normalized EL spectrum of white OLED at 3.5 V, (c) red, green, and blue spectra of the white OLED through C/Fs, and (d) Commission Internationale de l’Eclairage (CIE) 1931 color coordinates of sRGB standard and the white OLED through C/Fs. The gray dashed line refers to the sRGB color space.
