Figure 13
From: Ultrasensitive miniaturized planar microwave sensor for characterization of water–alcohol mixtures

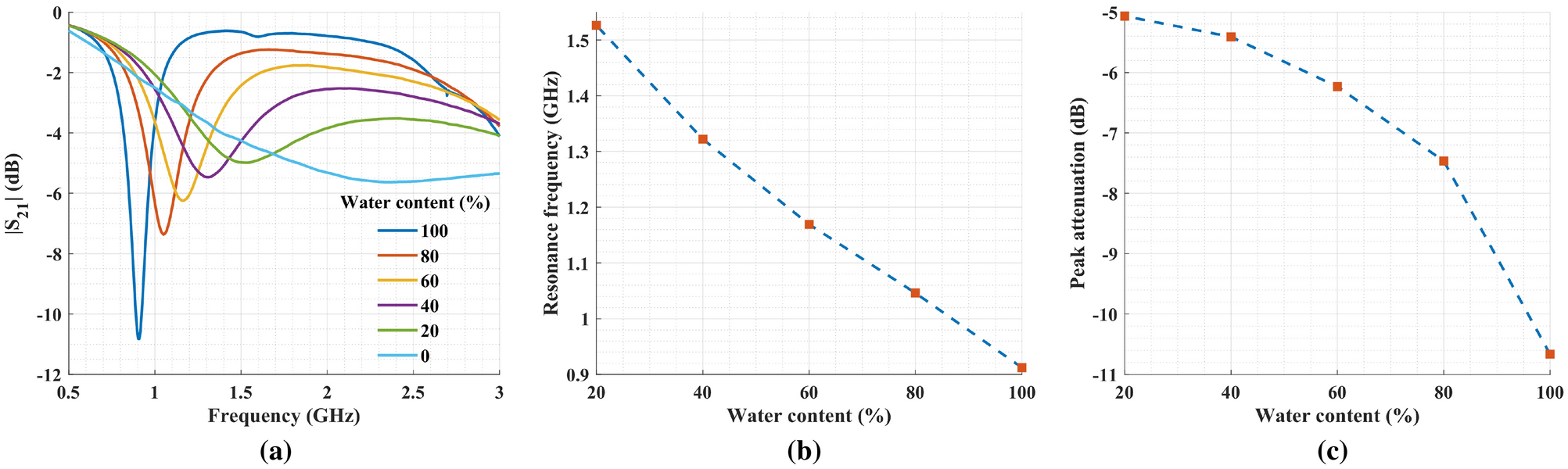

(a) Measured transmission coefficients for water–ethanol mixtures with 20% steps for volume fraction of water in the solution. (b) The resonance frequency for water–ethanol mixtures and (c) the peak attenuation for the same mixtures.
