Figure 4
From: Ultrasensitive miniaturized planar microwave sensor for characterization of water–alcohol mixtures

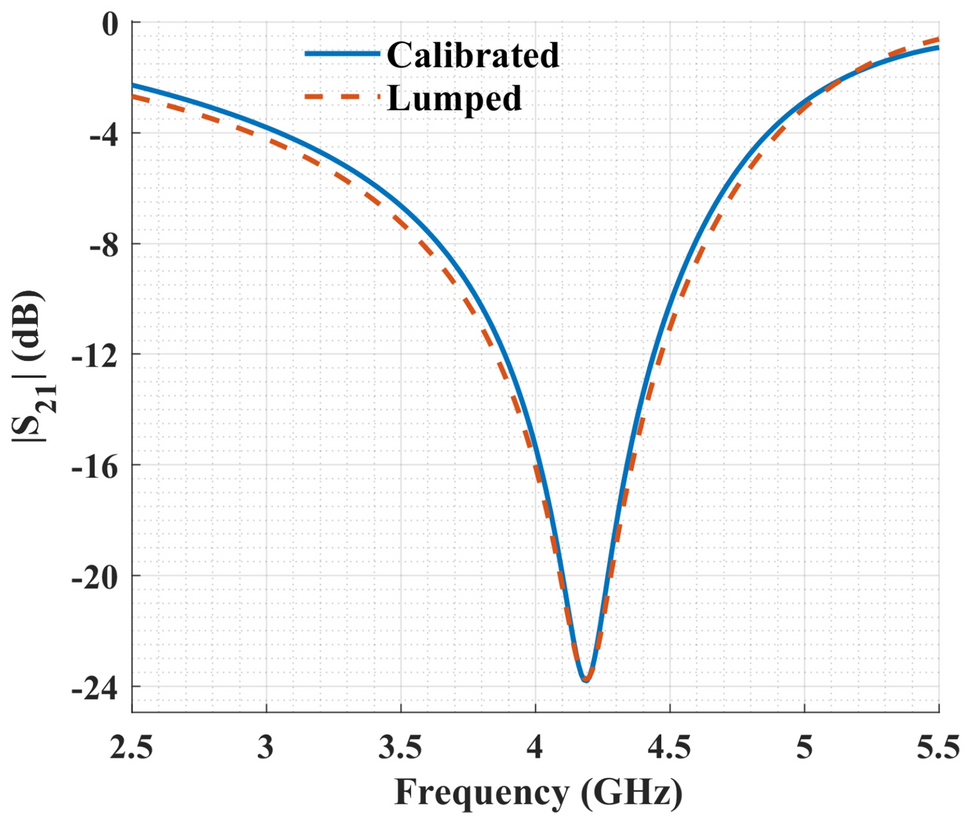

Transmission coefficient of the sensor obtained by the lumped model versus the full-wave electromagnetic simulation after calibration.
