Figure 3
From: Photoinduced properties of anodized Ti alloys for biomaterial applications

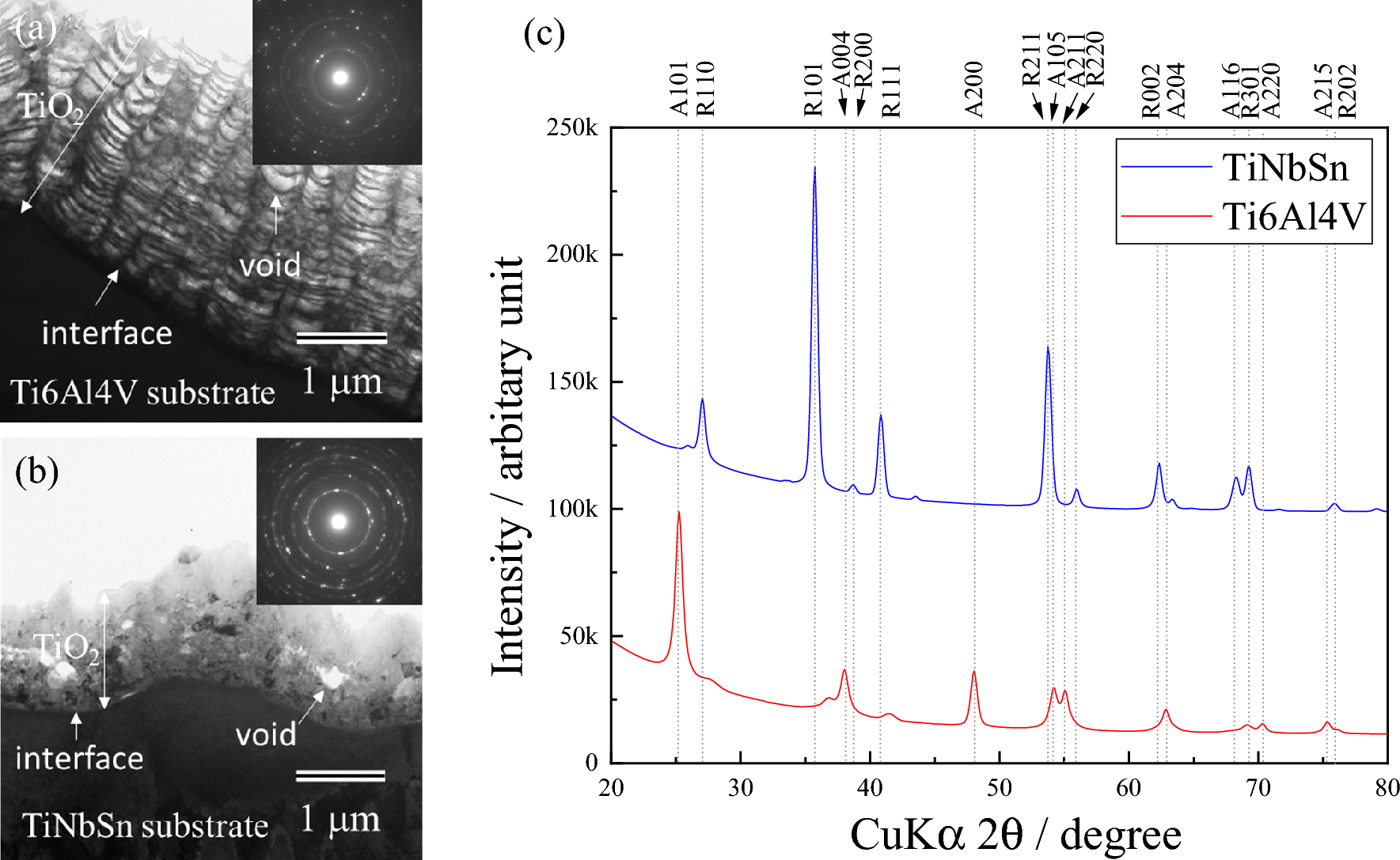

Cross-sectional TEM images of the anodic oxides on (a) Ti6Al4V and (b) TiNbSn, and (c) thin film XRD scan profiles of the anodized Ti alloys.
