From: Early transcriptomic host response signatures in the serum of dengue patients provides insights into clinical pathogenesis and disease severity

Figure 1

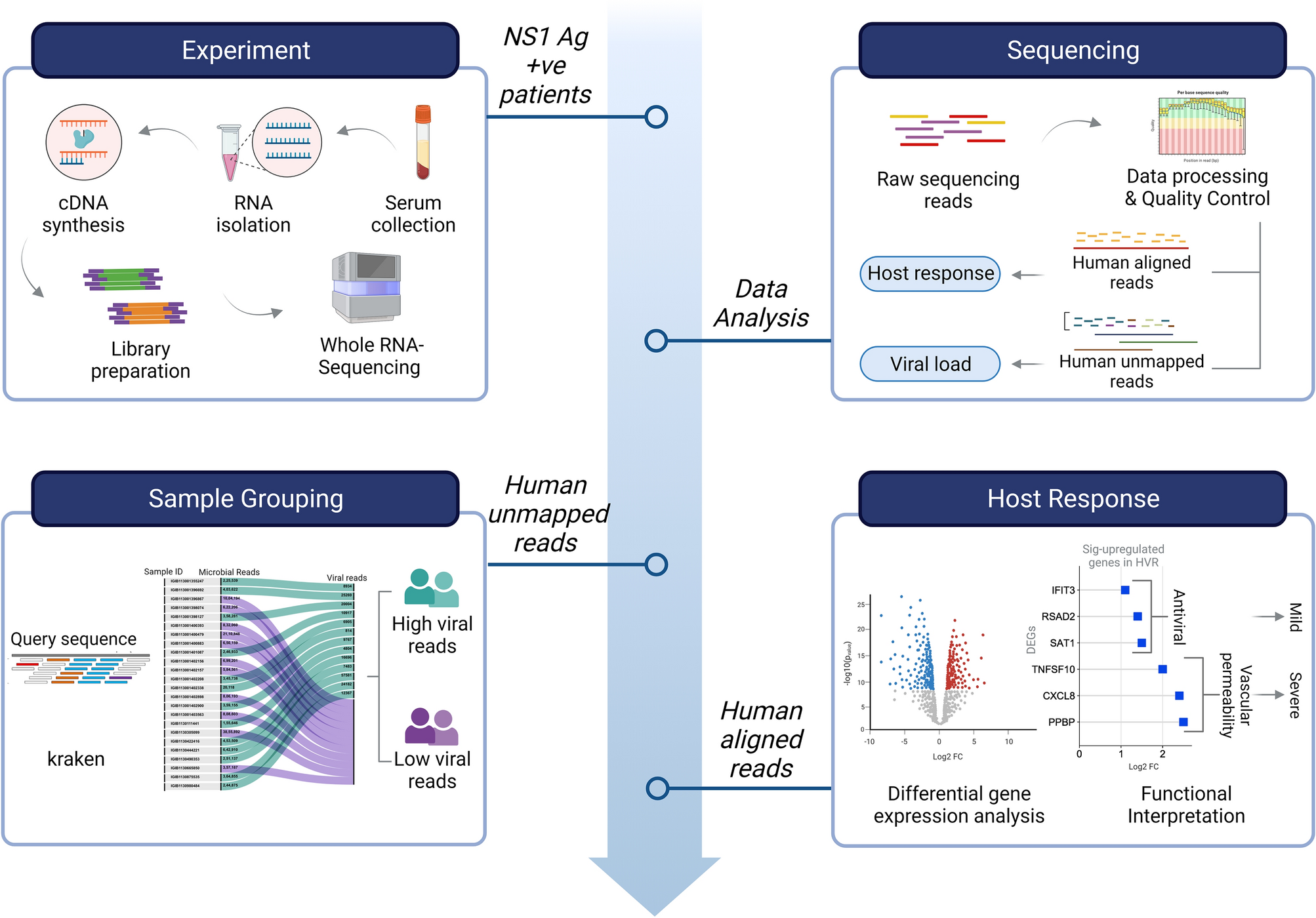

Summary of the experimental workflow and study design. The illustration highlights the key features and functional interpretation of the study wherein the RNA isolated from the serum samples of NS1 Ag positive dengue patients were used for RNA-seq followed by downstream data analysis. Using the kraken analysis, the human unmapped reads resulted in two groups: high viral reads (HVR) and low viral reads (LVR), while the human mapped reads were used for analysing the host response modulating dengue infection across the two identified groups. Figure were created with licensed version of BioRender (https://www.biorender.com/).
