Figure 2 | Scientific Reports

Figure 2

From: Early transcriptomic host response signatures in the serum of dengue patients provides insights into clinical pathogenesis and disease severity

Figure 2

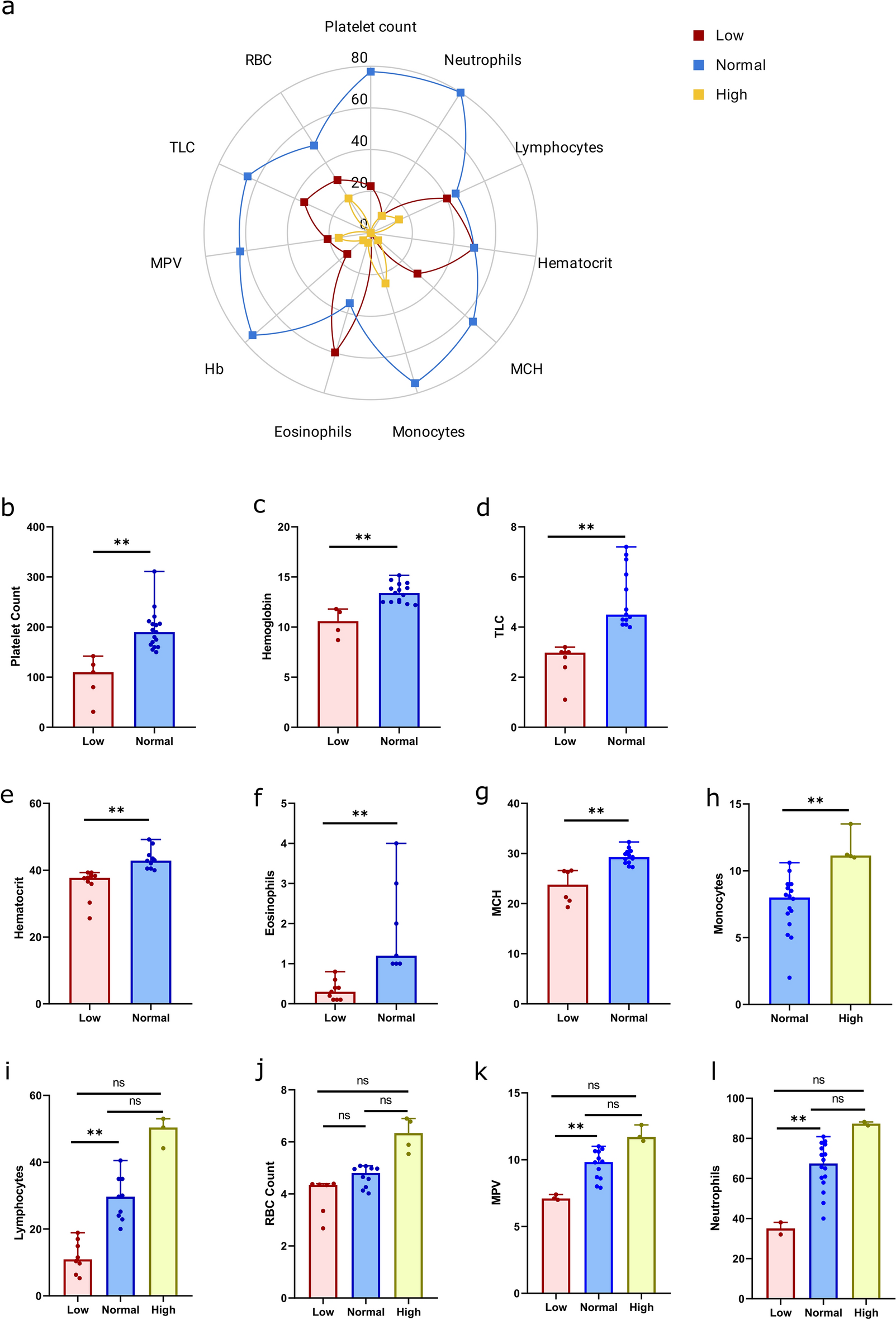

Blood parameter distribution in the study cohort. (a) Overall depiction of low, normal, and high values of blood profiles in the dengue infection patients. (b–g) Mann–Whitney U-test of low and normal for Platelet, Hb, TLC, Haematocrit, Eosinophils and MCH, (h) normal and high for monocytes, (i–l) low, normal and high for Lymphocytes, RBC Count, MPV and Neutrophils. Plots have been generated using licensed Graph pad prism version 8.
