Figure 3
From: Stress field disruption allows gas-driven microdeformation in bentonite to be quantified

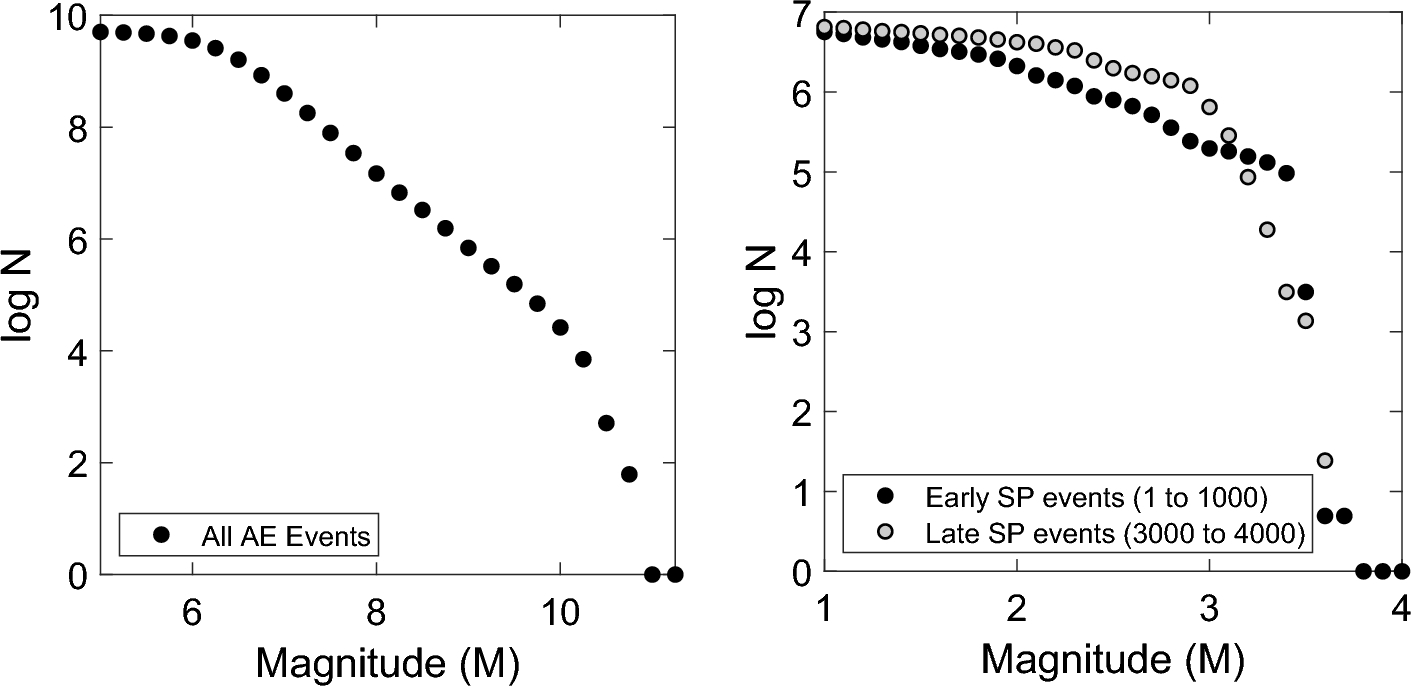

Cumulative frequency-magnitude distributions for Acoustic Emissions recorded during shear failure under triaxial compression in the Aue granite, after34 (left) and Stress Perturbation events recorded for 2 different test stages during gas injection into bentonite (Test D, right).
