Figure 5
From: Novel genes and alleles of the BTB/POZ protein family in Oryza rufipogon

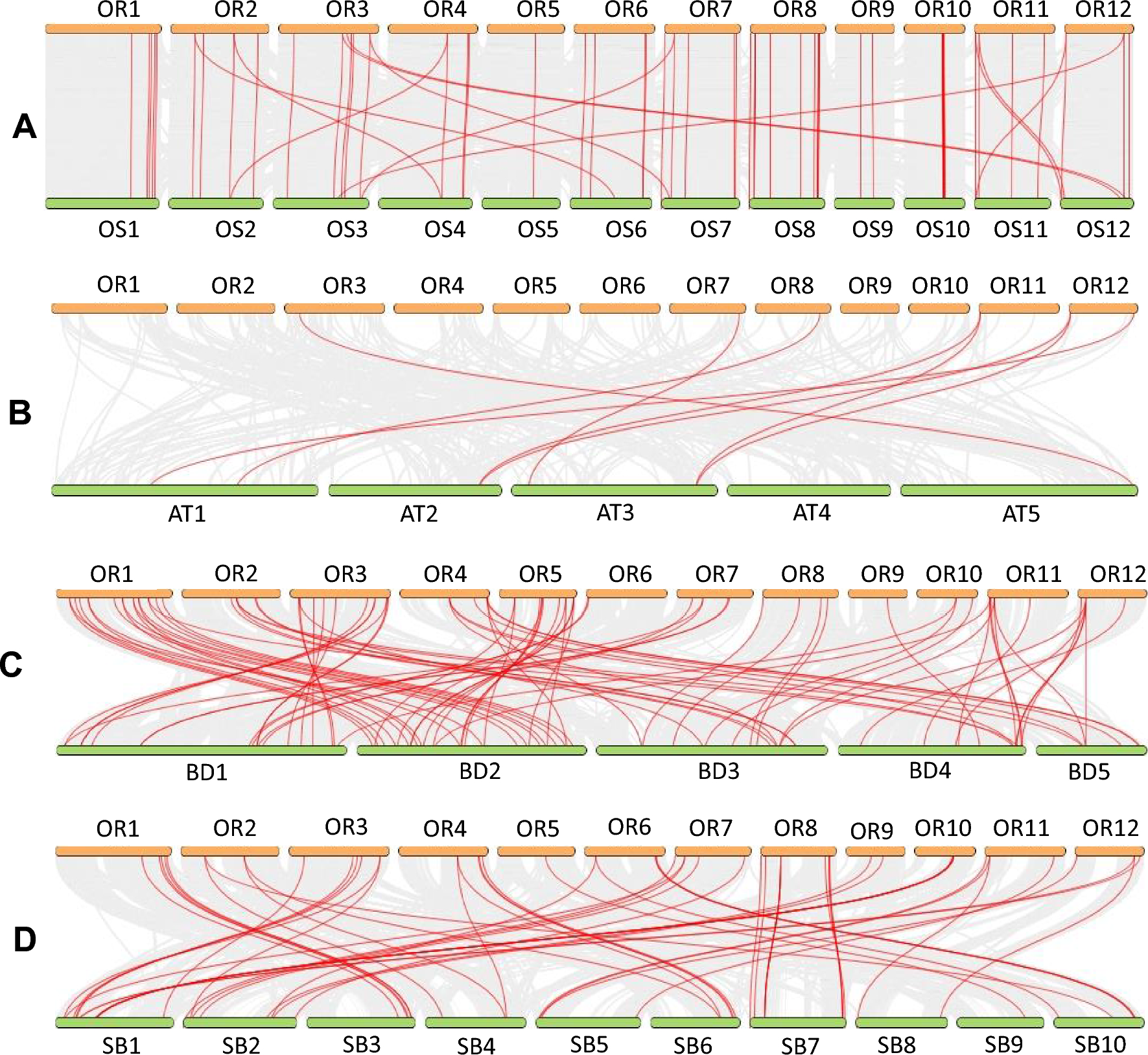

Analysis of collinearity between the OrBTB family with representative species of the monocot and dicot groups of plants. Yellow lines represent Oryza rufipogon (OR) chromosomes, while the green lines represent (A) Oryza sativa ssp. japonica (OS; IRGSP-1.0), (B) Arabidopsis thaliana (AT; TAIR10), (C) Brachypodium distachyon (BD; Brachypodium_distachyon_v3.0), and (D) Sorghum bicolor (SB; Sorghum_bicolor_NCBIv3) chromosomes. The grey lines in the background represent the collinear blocks in the genome of Oryza rufipogon and other species, while the red lines indicate the syntenic BTB gene pairs. Figure was generated using dual synteny plot option of Tbtool software.
