Figure 8

From: A kind of planar waveguides for cheating the high-speed digital signals into misidentifying the characteristic impedance

Figure 8

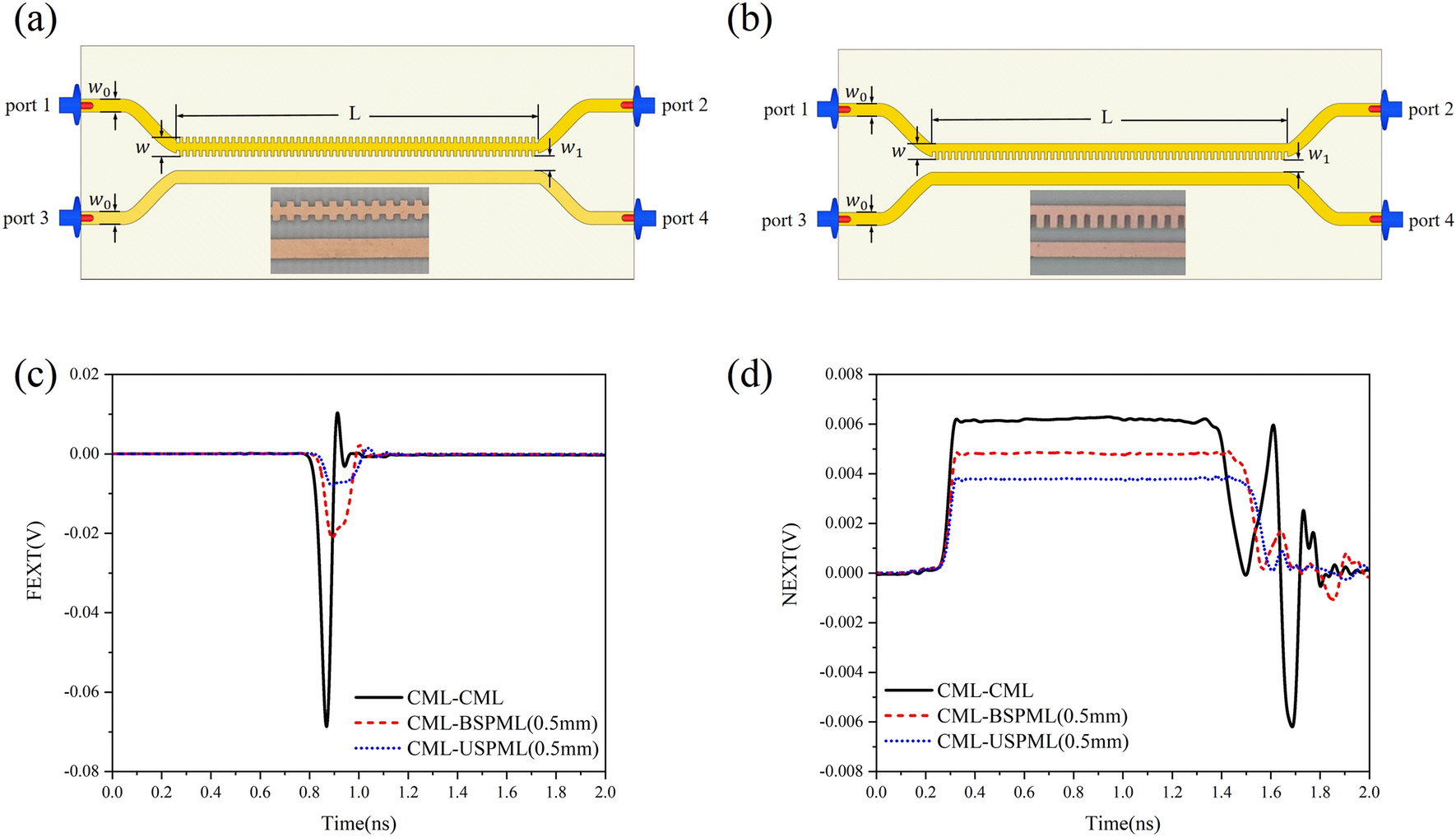

The coupled circuits composed of a bilateral/unilateral periodic microstrip line and a CML: (a) the coupled circuit composed of the bilateral periodic microstrip line and the CML, (b) the coupled circuit composed of the unilateral periodic microstrip line and the CML, (c) the FEXT measurement result of the coupled circuit composed of the periodic microstrip line and the CML, and (d) the NEXT measurement result of the coupled circuit composed of the periodic microstrip line and the CML.
