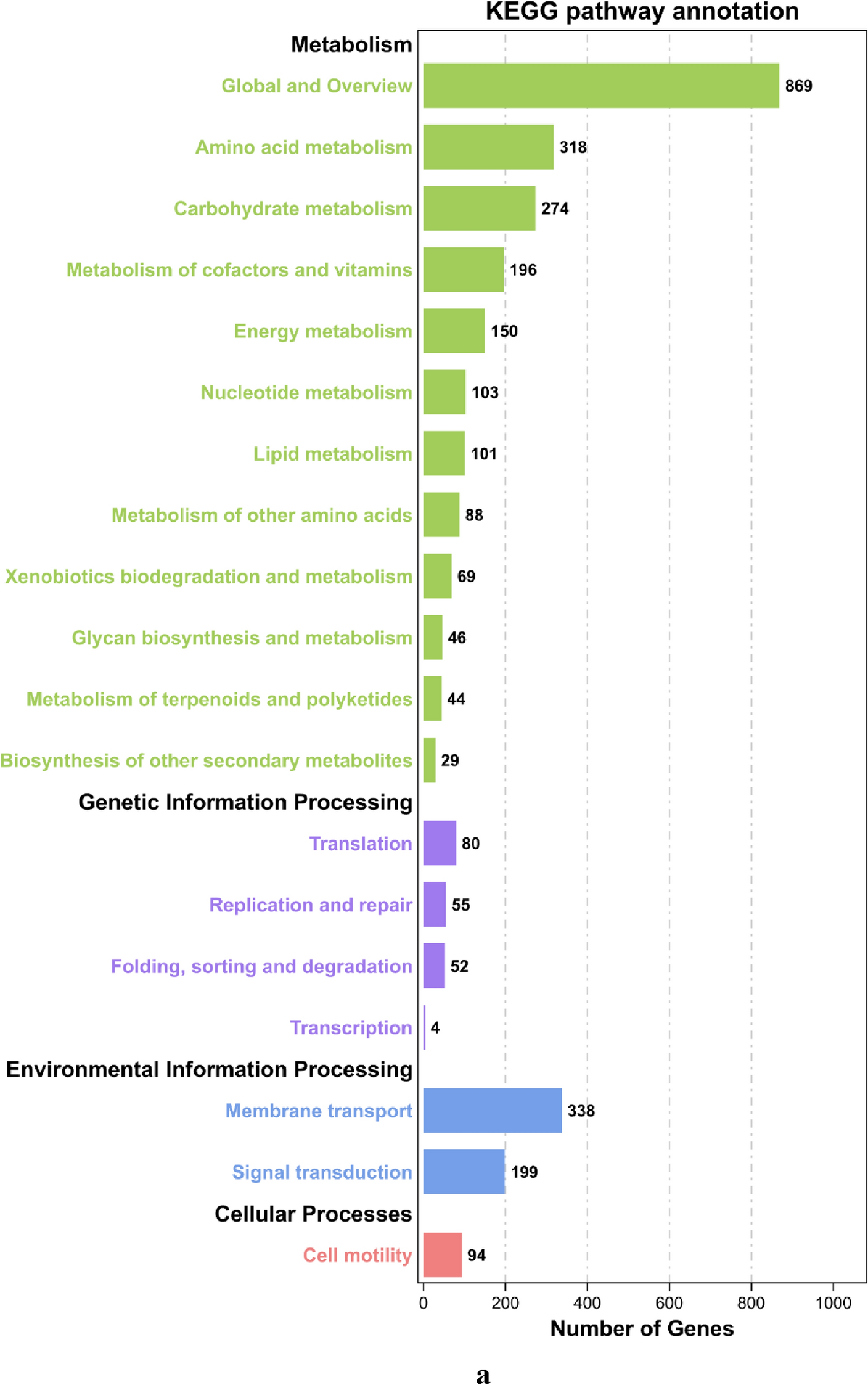

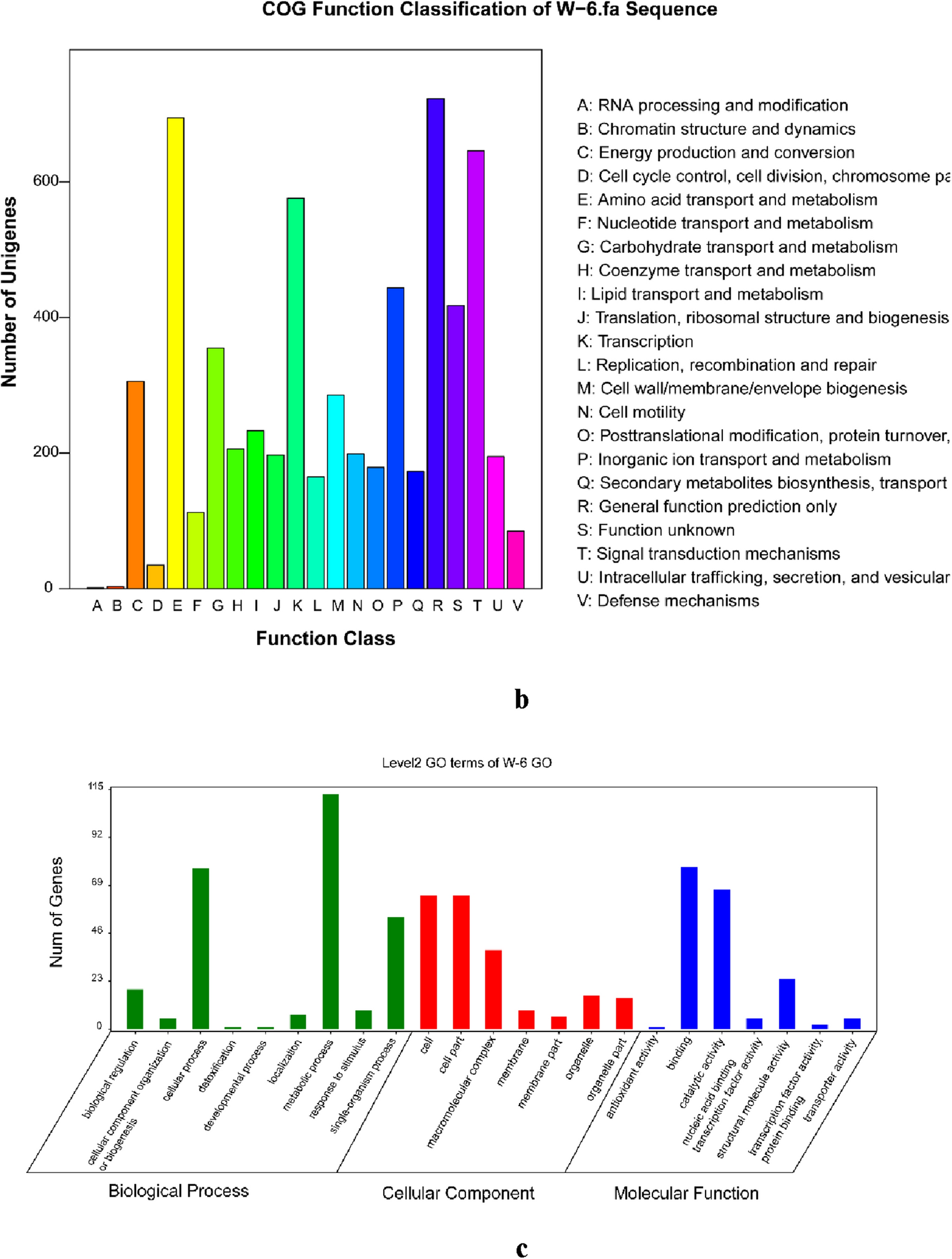

Function categorization of genes of the Pseudomonas sivasensis W-6. (a) Based on the KEGG database. The different colors represent different pathways and the numbers in the diagram represent the number of genes in such pathways. The green color represents KEGG pathways related to cell metabolism, purple color represents KEGG pathways related to genetic information processing, blue color represents KEGG pathways related to environmental information processing, and pink color represents KEGG pathways related to represents cellular processes. (b) COG function classification of Pseudomonas sivasensis W-6 genome. The different colors represent different COG function classification and the numbers in the diagram represent the number of genes in such pathways. (c) GO function annotation chart of W-6. The horizontal axis represents the functional classification, which is displayed in different colors, and the vertical axis represents the number of predictive genes contained in each functional classification.
