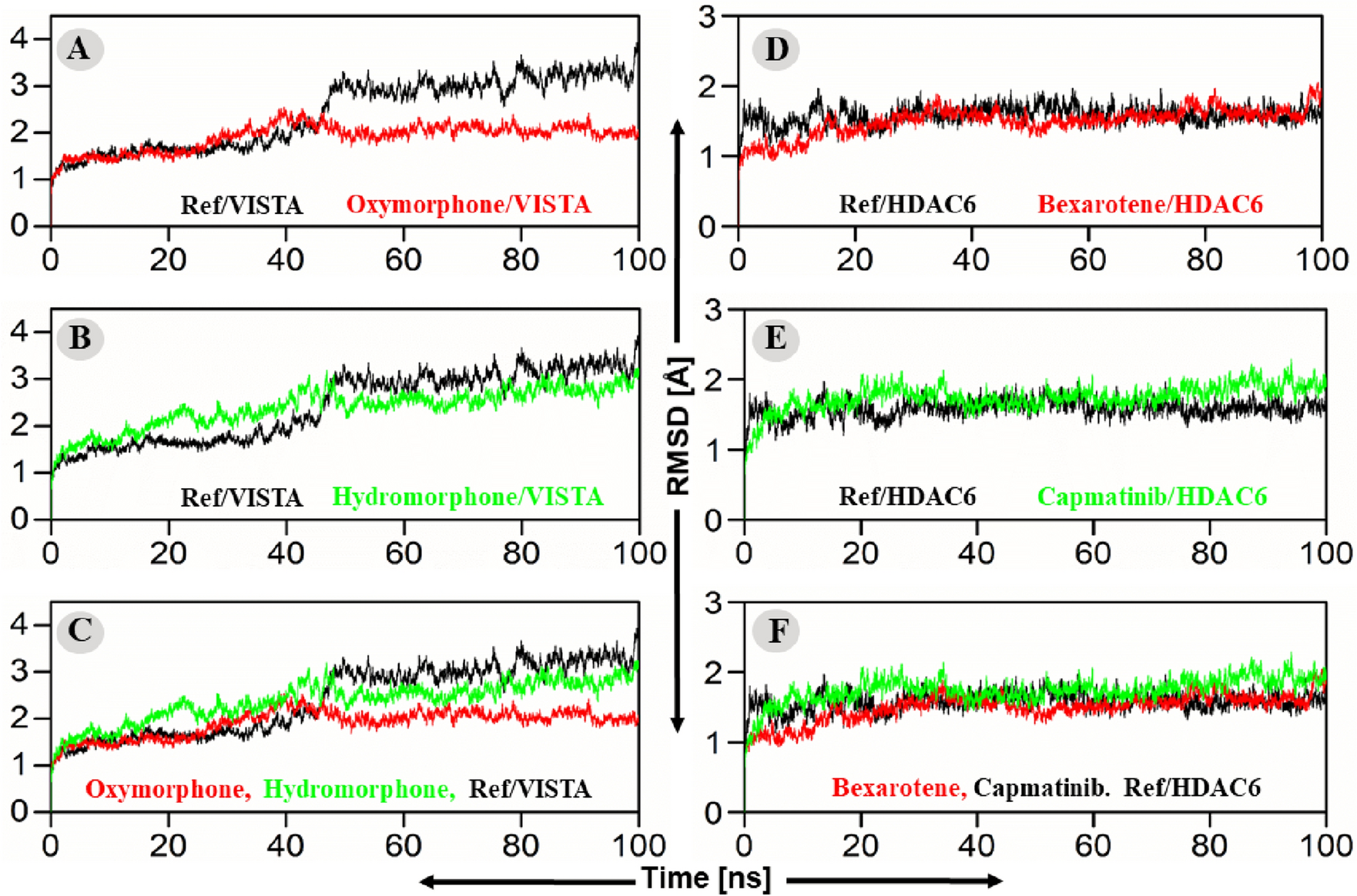

(A–C) RMSD Plot of the repurposed drugs/VISTA and ref-drug (CA-170)/VISTA complexes. The x-axis and y-axis showed the time in nanoseconds (100 ns) and RMSD in Angstroms respectively. (A) RMSD of Oxymorphone–VISTA complex (red) and CA-170/VISTA complex (black), (B) Hydromorphone–VISTA complex (Green) and CA-170/VISTA complex (Black) RMSD, (C) Combine RMSD compassion of VISTA. While (D–F) plot of the hits/HDAC6 and ref-drug (Trichostatin A)/HDAC6 complexes’ root mean square deviations. (D) RMSD of Bexarotene–HDAC6 complex (red) and CA-Trichostatin A/HDAC6 (black), (E) RMSD of Capmatinib–HDAC6 complex (Green) and CA-Trichostatin A/HDAC6 (black), (F) Combine RMSD compassion of HDAC6.
