Figure 7
From: Composition and evolution of the gut microbiota of growing puppies is impacted by their birth weight

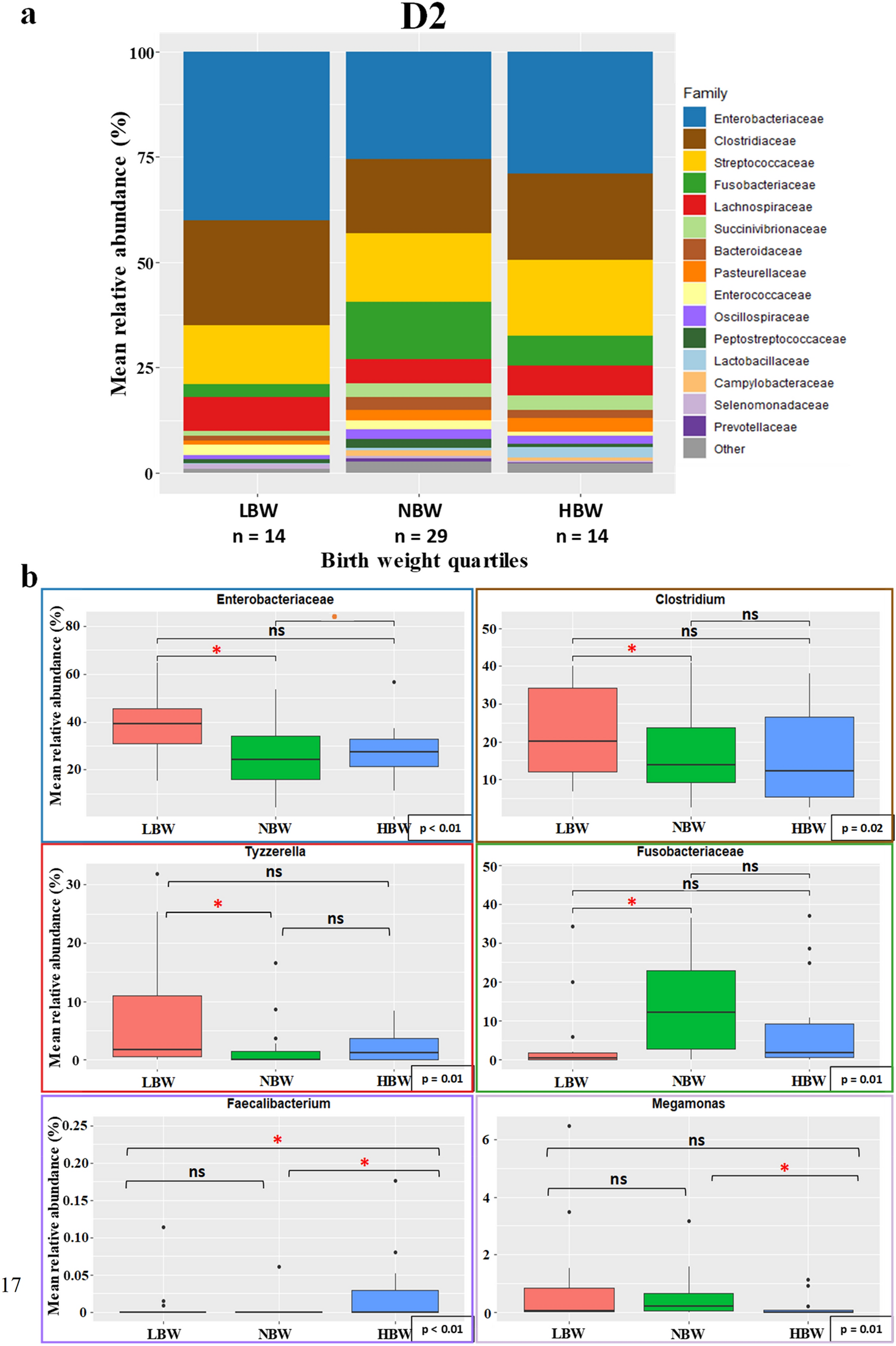

Taxa relative abundance at day 2 (n = 57 puppies) (a) Stacked bar plot of the mean relative abundances of the 15 most abundant classified families for each quartile at the second day after birth. The 16th family “Other” is the sum of the relative abundance of all remaining families. (b) The families Enterobacteriaceae and Fusobacteriaceae and the genera Clostridium, Tyzzerella, Faecalibacterium and Megamonas were selected for a focused box plot analysis. A red asterisk (*) indicates a significantly different relative abundance (adjusted p ≤ 0.05) between two quartile groups after Tukey’s post-hoc test, while an orange dot (·) indicates a trend (adjusted 0.1 ≥ p > 0.05).
