Figure 9

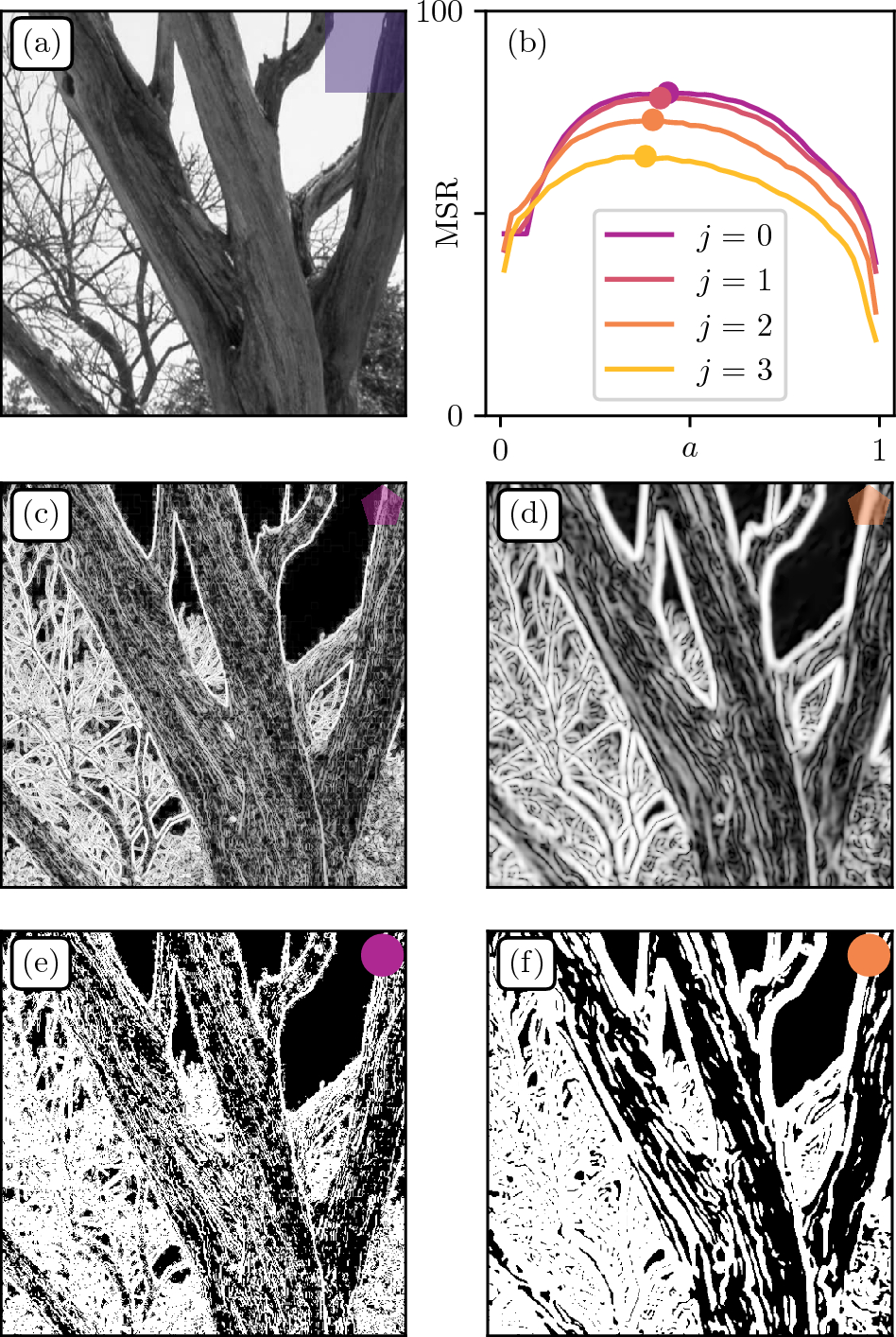

Influence of the Gradient Wavelet size. (a) Original patch from Fig. 6a. (b) MSR as function of a for gradient wavelets of dyadic size \((2^j), j \in \{0,1,2,3\}\). (c,d) Gradient magnitudes for \(j=0\) and \(j=2\) respectively. (e,f) Segmented gradient magnitudes at critical threshold values \(a_c\) for \(j=0\) and \(j=2\) respectively.
