Figure 11

From: The injection-production performance of an enhanced geothermal system considering fracture network complexity and thermo-hydro-mechanical coupling in numerical simulations

Figure 11

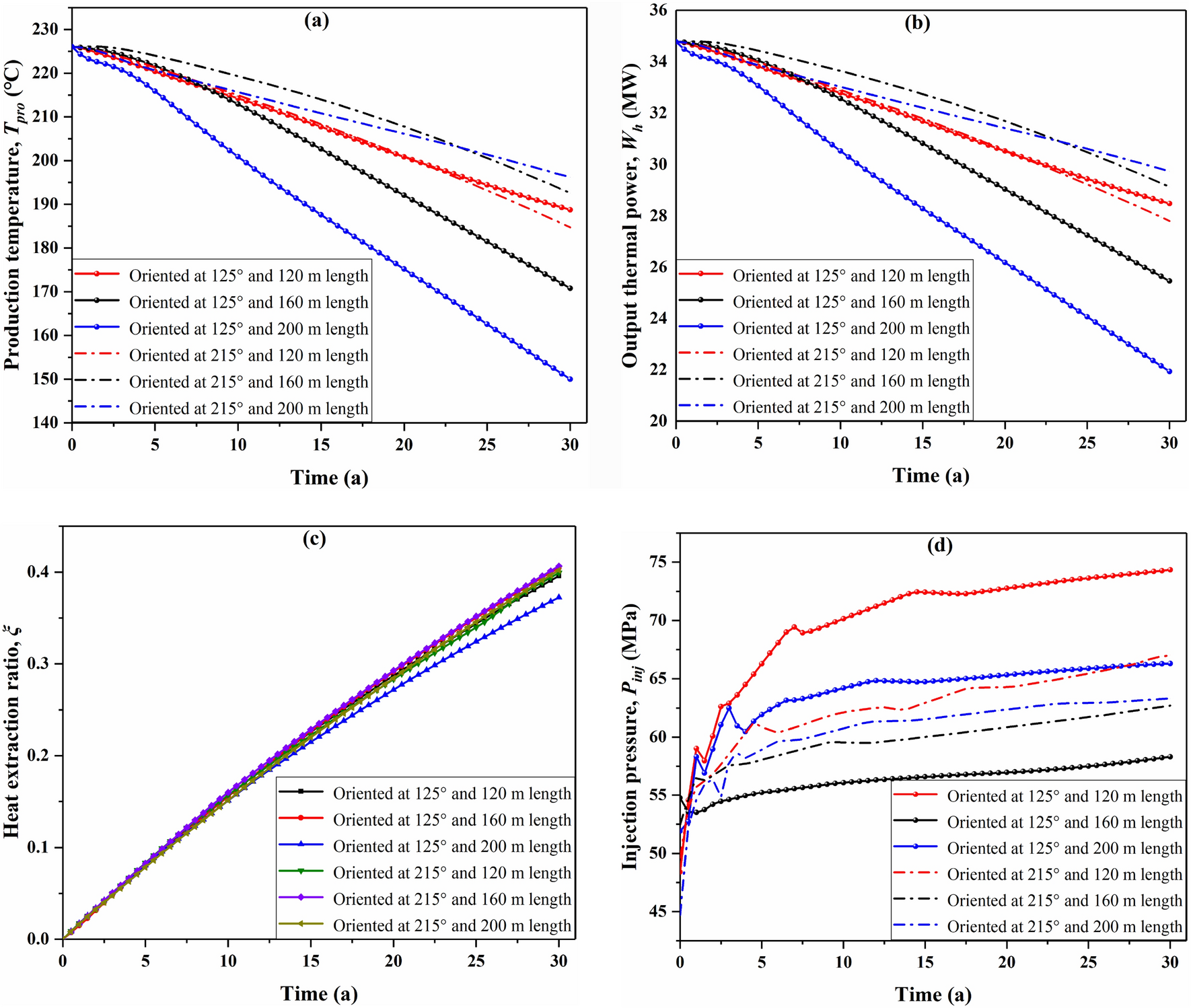

Effect of fracture length with different orientation on EGS performance, wherein the fractures oriented towards 125° are roughly parallel to the injection-production well connection and those oriented towards 215° are perpendicular to the injection-production well connection direction: (a) production temperature, (b) output thermal power, (c) heat extraction ratio, and (d) injection pressure variation with time.
