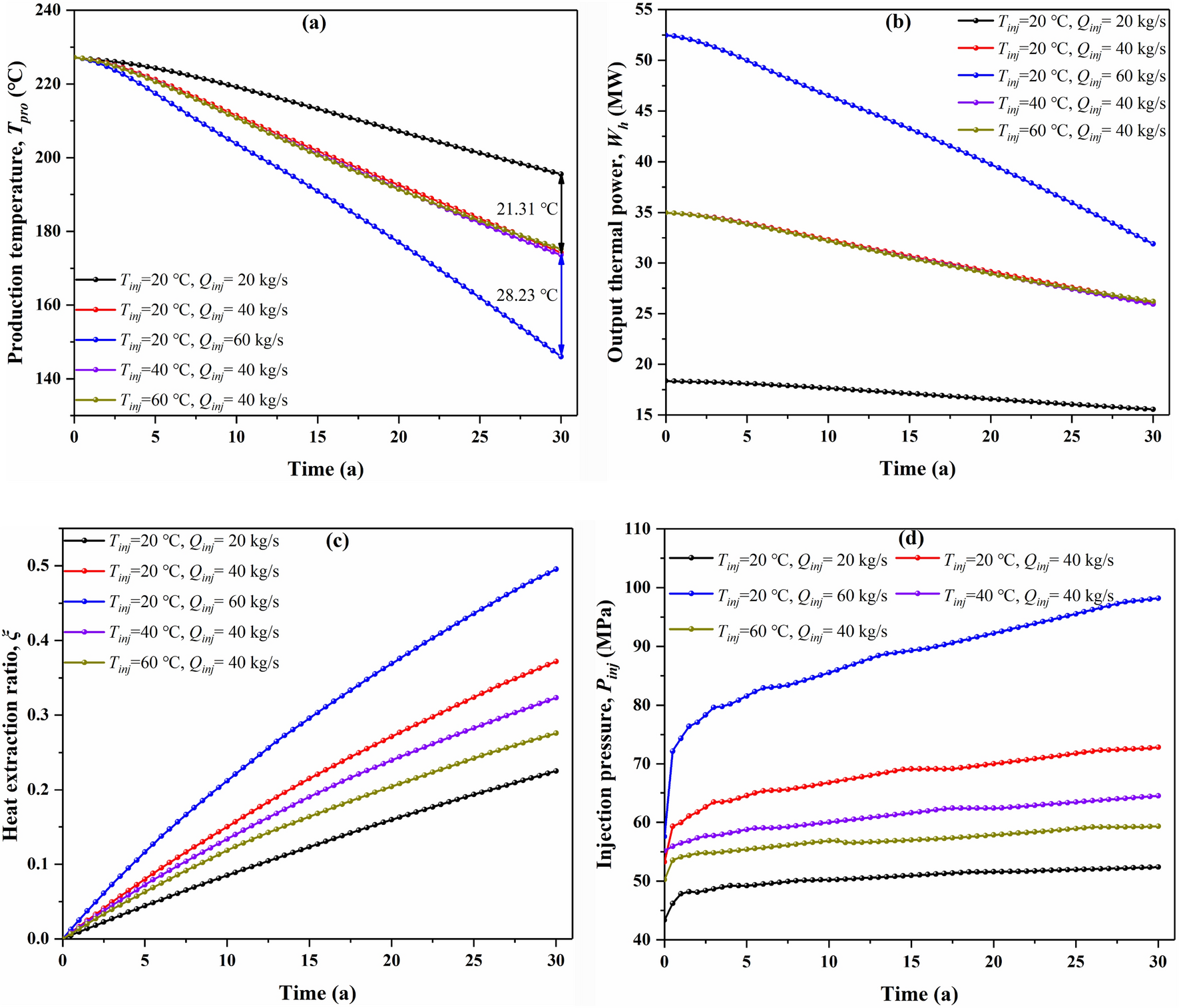

Figure 12
Effect of injection parameters on the production performance of random fracture model, (a) production temperature, (b) output thermal power, (c) heat extraction ratio, and (d) injection pressure variation with time.
