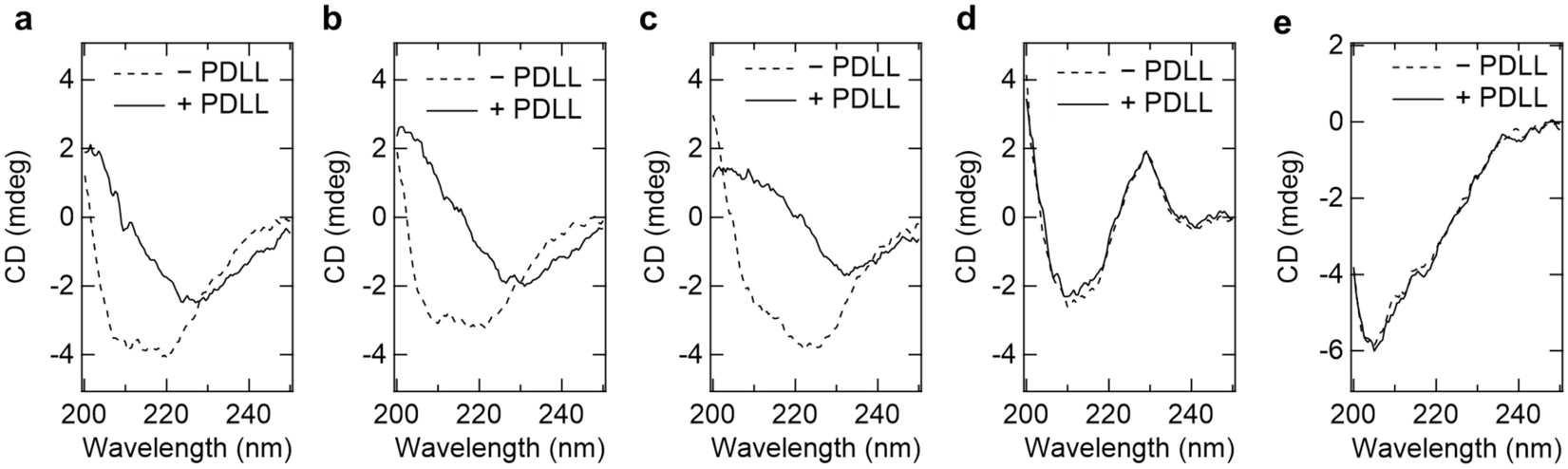

Figure 5
From: Activation of oxidoreductases by the formation of enzyme assembly
CD spectra of oxidoreductases in the presence of PDLL. Each sample solution contained 1 μM oxidoreductase (ALDH at 5 μM for sufficient absorption), 0.2 mM PDLL, and 20 mM Tris–HCl (pH 7). (a) POX, (b) LOX, (c) DLD, (d) ALDH, (e) GDH. PDLL, Poly-d-l-lysine; POX, Pyruvate oxidase; LOX, l-Lactate oxidase; DLD, d-Lactate dehydrogenase; ALDH, Aldehyde dehydrogenase.
