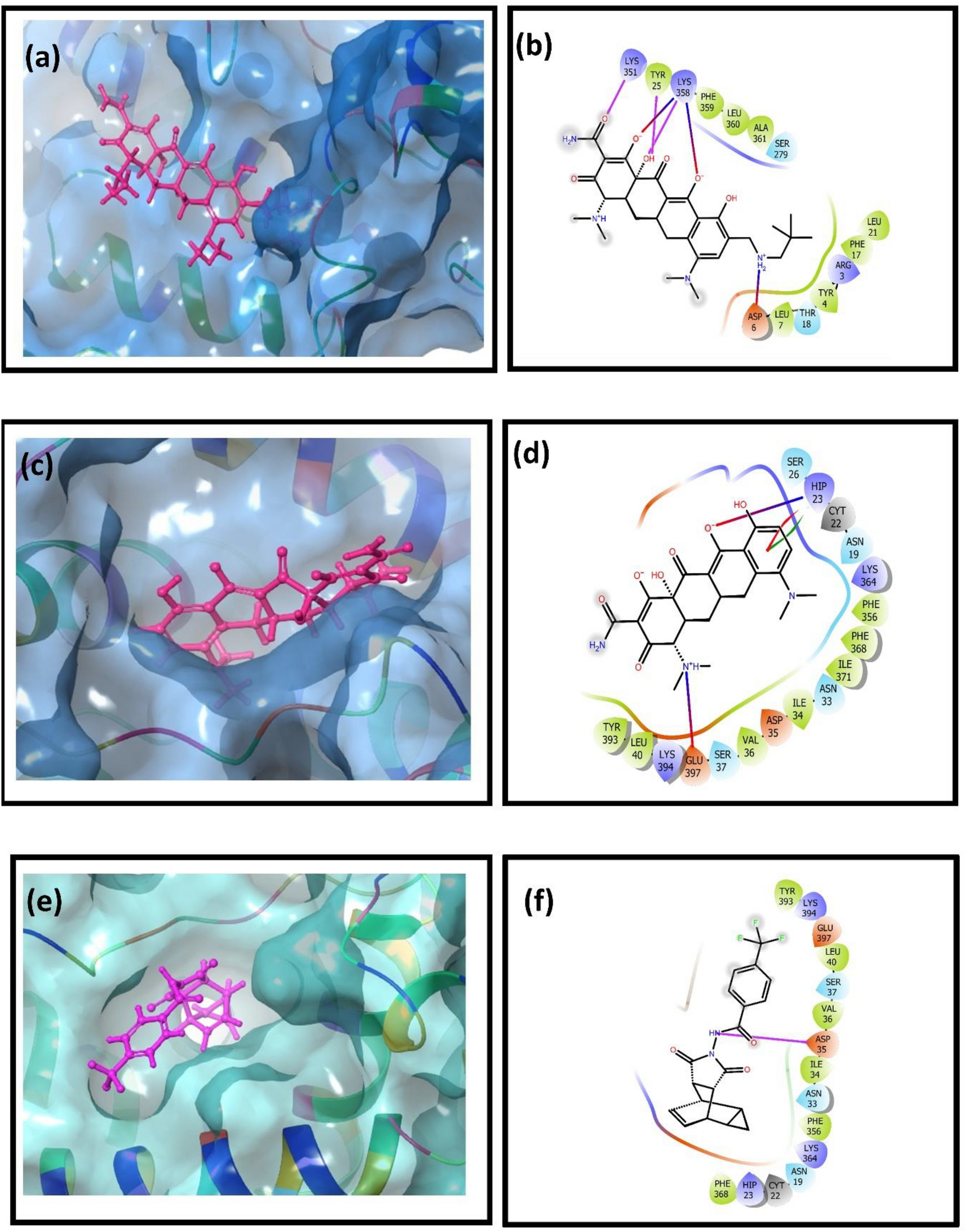

3D and 2D intermolecular interaction diagram of (a, b) Omadacycline, (c, d) Minocycline and reference molecule (e, f) Tecovirimat. Herein, the pink line represents H-bond, red-violet line represents salt bridge, red colour petals represents negative charge, violet colour petal represents positive, green colour petals represents hydrophobic bond, and blue colour petal represents polar bond in the 2D interaction diagram of the complex.
