Figure 2
From: Comparative proteomic analysis of edible bird’s nest from different origins

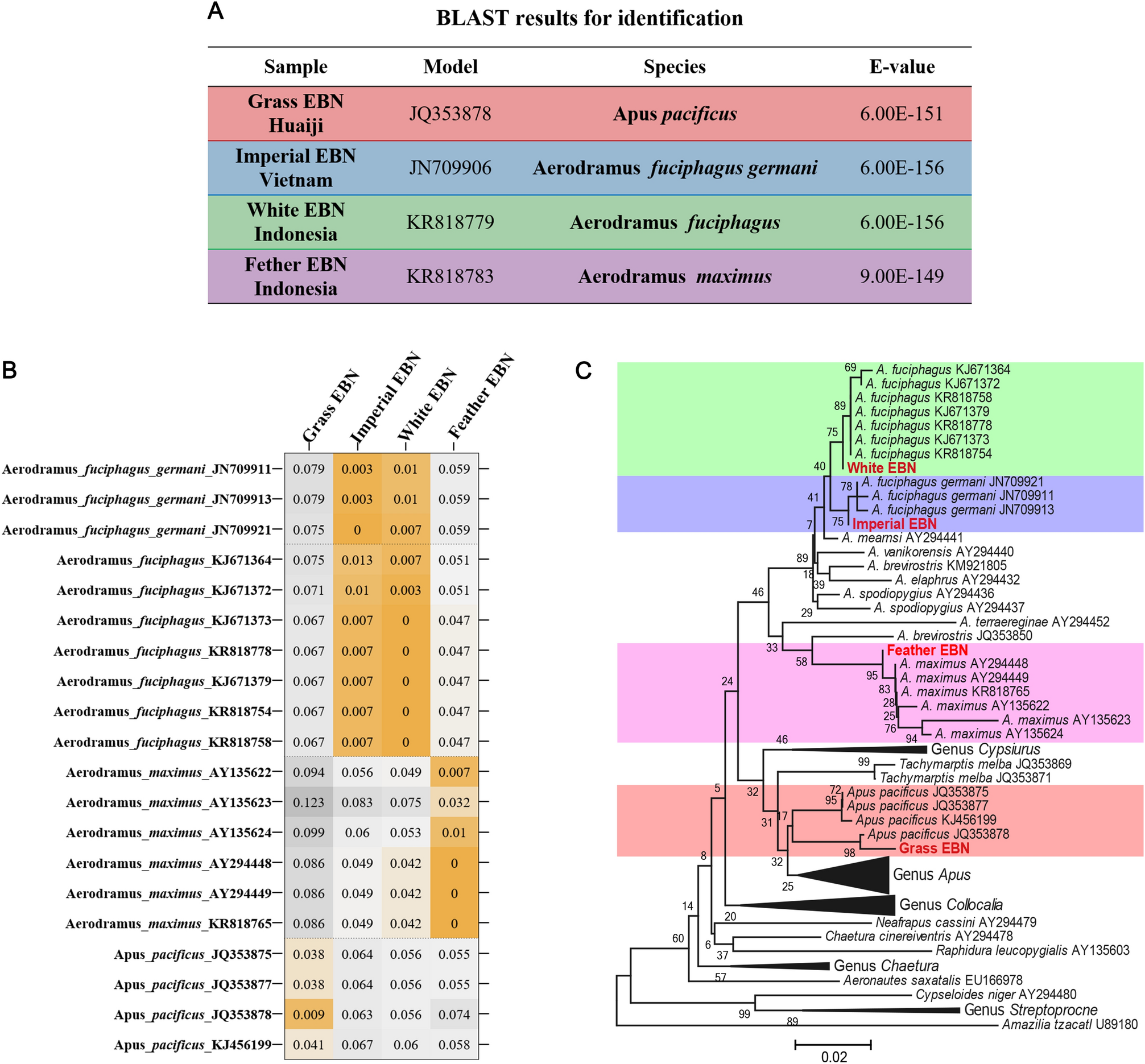

Genetic identification of EBN samples. (A) BLAST results of the four samples were tabulated and the login numbers of the sequences that most similar to the samples were marked as Model. (B) Genetic distance between samples’ sequences and model’s sequences. (C) Neighbor-joining tree based on cytb gene sequences of samples and Apodidae. Amazilia tzacatl was selected as outgroup. Sample sequences were marked in red font in the tree. The bottom blocks of different colors represented different species, and the bootstrap values were marked on the branches.
