From: Learning hyperparameter predictors for similarity-based multidisciplinary topology optimization

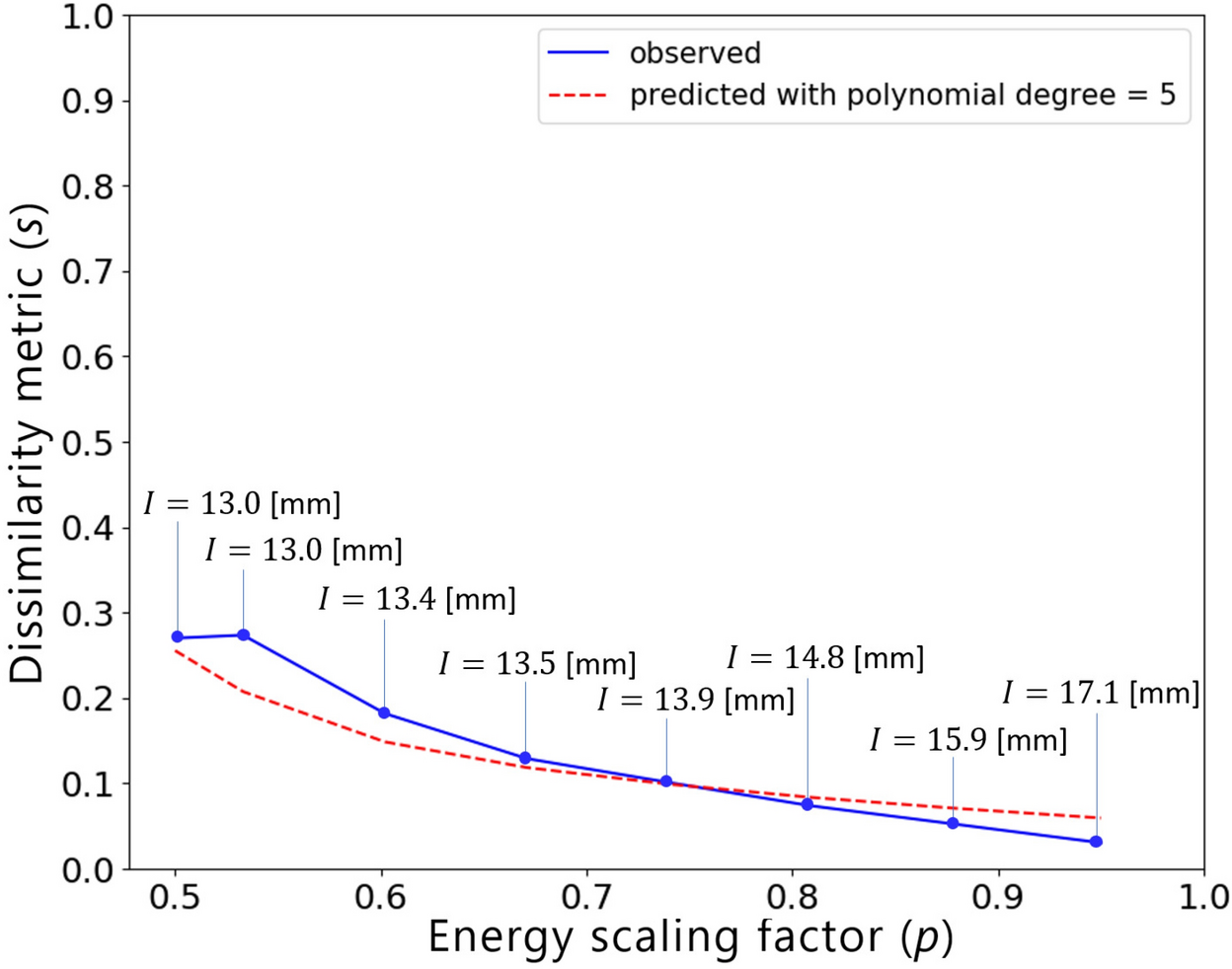

Relationship between the dissimilarity metric s and the energy scaling value p predicted by the proposed hyperparameter model (dashed red curve) and the corresponding curve obtained via performing multiple similarity-based TO runs34 (solid blue curve) for the 2D dynamic crash TO problem, together with the corresponding structural performance metric, i.e., intrusion (I) of the pole into the structure.
